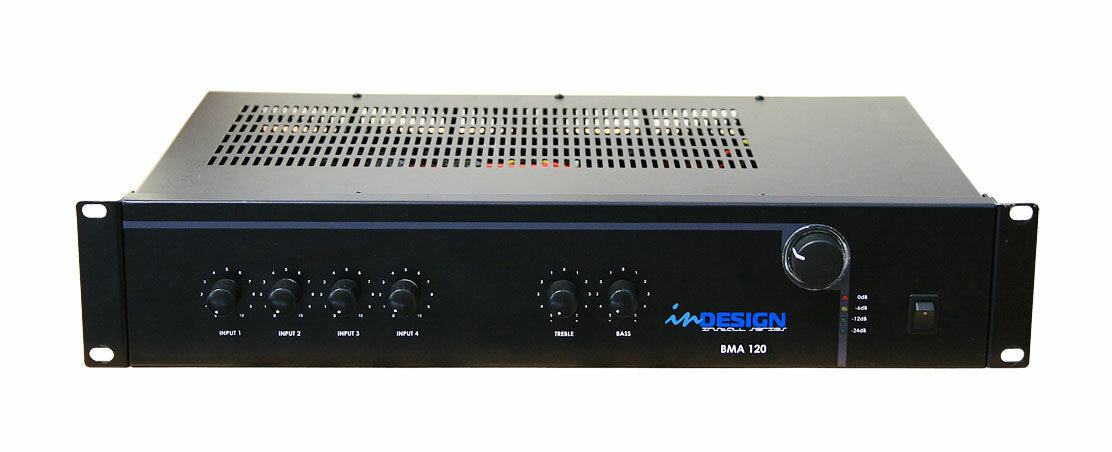

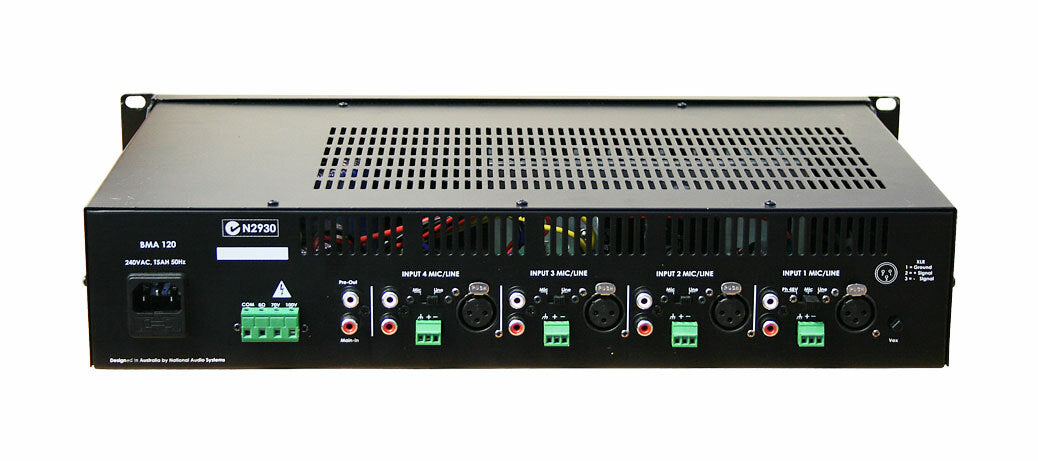

inDESIGN BMA 120 – 100V Mixer Amplifier (120W)

The inDESIGN BMA 120 is a dependable, commercial-grade mixer amplifier designed for retail, hospitality, education, offices, and industrial audio installations. Built for clarity, reliability, and easy integration, it delivers 120W of output power with the flexibility of 4 Mic/Line inputs, selectable 4–8 Ω low-impedance output, or 70V/100V constant-voltage speaker lines.

Input 1 includes a priority mute (VOX) so paging announcements can automatically override all other inputs—ideal for venues needing clear communication and background music control. A pre-amp out / power-amp in link is provided, allowing simple connection to an external equaliser or booster amplifier for system expansion.

As part of the inDESIGN Install Series, the BMA 120 offers excellent performance, reliability, and value for fixed installations.

Key Features

• 120W output power

• 4 × Mic/Line inputs

• Input 1 with paging priority (VOX mute)

• 4–8 Ω low-impedance speaker output

• 70V / 100V constant-voltage outputs

• Pre-amp out / power-amp in link

• Bass & Treble tone controls

• LED output level meter

• Convection cooling (fan-free)

• Thermal, short-circuit & overload protection

• 48V phantom power on CH1

Specifications

• Output Power: 120W

• AC Power Input: 230–240VAC

• Low-Impedance Output: 4–8 Ω

• High-Impedance Outputs:

  • 70V / 40 Ω

  • 100V / 80 Ω

• Input Sensitivity:

  • Mic (Balanced XLR): 4mV

  • Line (RCA): 500mV

• Pre-Out Level: 650mV

• Frequency Response: 50Hz – 18kHz (±2dB @ -3dB rated power)

• Noise Floor: 9mV @ 100V

• THD: 0.40% (at -3dB)

• Tone Controls:

  • Bass: ±10dB @ 100Hz

  • Treble: ±10dB @ 10kHz

• Controls: Input level, tone, master level, VOX

• VOX Priority: CH1 overrides CH2–4 (AFL)

• Phantom Power: 48V (CH1 XLR)

• Cooling: Convection

• Protection: Thermal (95°C), short-circuit, overload, muted input

• Level Meter: LED (-24dB to 0dB)

• Dimensions: 485 (W) × 88 (H) × 275 (D) mm

• Weight: 8.7 kg

Ideal For

• Background music systems

• Paging and announcements

• Retail and hospitality venues

• Schools, offices, halls, community centers

• Industrial and commercial installations

• 120W 100V/70V/4–8Ω mixer amplifier
• 4 Mic/Line inputs
• Priority mute on Input 1 (VOX paging)
• Pre-amp out / power-amp in link
• Bass and Treble tone controls
• LED output level meter
• Thermal, short-circuit and overload protection
• 48V phantom power on CH1
• Convection (fan-free) cooling
