EB-PQ2010B 4K Large Venue 3LCD 10000lm Laser Projector - No Lens

The Epson EB-PQ2010B sets a new standard for professional projection with its brilliant 4K image quality, powered by Epson’s advanced 4K Crystal Motion technology. Delivering an impressive 10,000 lumens of brightness, this ultra-compact and lightweight projector is the world’s smallest and lightest in its class, making it ideal for large venues and demanding installations.

With 3LCD, 3-chip technology, enjoy up to 3x brighter colours and consistent, reliable performance. The projector boasts a 5,000,000:1 dynamic contrast ratio, HDR support, and scene adaptive gamma for incredible clarity, detail, and lifelike visuals in every frame.

Designed for flexibility, the EB-PQ2010B is compatible with Epson’s PU series lenses, reducing the need for additional lens investments. Advanced connectivity options, including 12G-SDI in/out and HDMI in/out with 120 Hz support, provide seamless integration with modern AV systems.

Supporting Epson’s ELPEC01 camera, Projector Professional Tool, and Config Tool, it offers extensive software functionality for calibration, control, and management. With signal backup technology, it ensures uninterrupted performance by automatically switching inputs during critical moments.

Engineered for long-term reliability, the EB-PQ2010B features up to 20,000 hours of maintenance-free operation and robust construction, making it a dependable solution for auditoriums, events, and large-scale projection environments.

Specifications

Product Code: V11HB02853

Technology

• Projection System: 3LCD

• LCD Panel: 1.04-inch


• Light Source: Laser diode

• Resolution: 4K (3840 x 2160, 8.3 million pixels)

• Brightness: 10,000 lumens (colour & white light output)

• Native Aspect Ratio: 16:9

• Native Contrast Ratio: 3,000:1

• Dynamic Contrast Ratio: 5,000,000:1

• LD Input Power: 449 W

• Keystone Correction (Standard Lens): Vertical ±45°, Horizontal ±30°

• Lens Shift (Standard Lens): Vertical ±58%, Horizontal ±16%

Optical

• Zoom Ratio: 1 – 1.61

• Screen Size: 60" – 1000"

• Projection Distance (100" screen): 3.35 m

• Throw Ratio: 1.52 (Wide) – 2.47 (Tele)

• Lens F Number: 1.8 – 2.3

• Lens Focal Length: 36 mm – 57.3 mm

• Focus Method: Powered

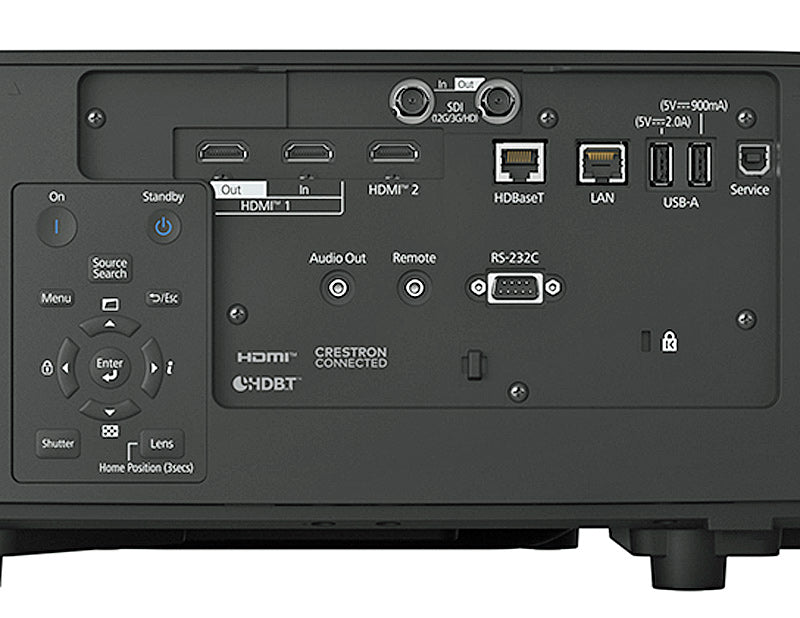

Connectivity

• Inputs:

  • 2 x HDMI

  • 1 x HDBaseT

  • 1 x 12G-SDI

• SDI I/O: 1 x BNC

• Control I/O: 1 x RS232C, 1 x Stereo Mini Jack

• Network I/O: 1 x RJ45, 1 x USB Type-A (for optional wireless LAN)

• USB I/O: 2 x USB Type-A, 1 x USB Type-B

• Outputs:

  • 1 x HDMI

  • 1 x 12G-SDI

  • 1 x Stereo Mini Jack (Audio)

• HDBaseT: Yes

• Wireless Connectivity: Optional

Advanced Features

• Wireless LAN enterprise security (with optional LAN unit)

• Remote access camera support (ELPEC01 optional)

• Art-Net lighting control support

• Lens position memory

• Edge blending & scaling

• Curved screen projection and blending support

• NFC functionality

• Frame interpolation (4K @ 120 Hz)

• Super-resolution enhancement

• 360° projection capability

• HDR10 & HLG support

• Scene adaptive gamma

• Auto contrast enhancement

• Auto signal backup (HDMI, SDI, HDBaseT)

• Instant Off & Direct Power On

• Fully sealed optical engine & laser light source for dust resistance

General

• Dimensions (W x D x H, incl. feet): 545 x 436 x 189 mm

• Weight: 18.8 kg

• Warranty: 5 years projector warranty

• Power Supply: 100 – 240 V AC, 50/60 Hz

• Power Consumption:

  • Normal Operation (LD On): 613 W

  • Standby: 2 W

• Noise Level: 39 dB (Normal) / 29 dB (Eco)

• Security: Kensington® lock, wireless LAN unit lock, security cable hole, lens lock

• Colour Modes: Dynamic, Presentation, Cinema, BT.709, Natural, DICOM SIM, Multi-projection

Included in the Box

• Epson EB-PQ2010B projector

• 3 m power cable

• Remote control with 2 x AA batteries

• Cable cover

• User’s guide
