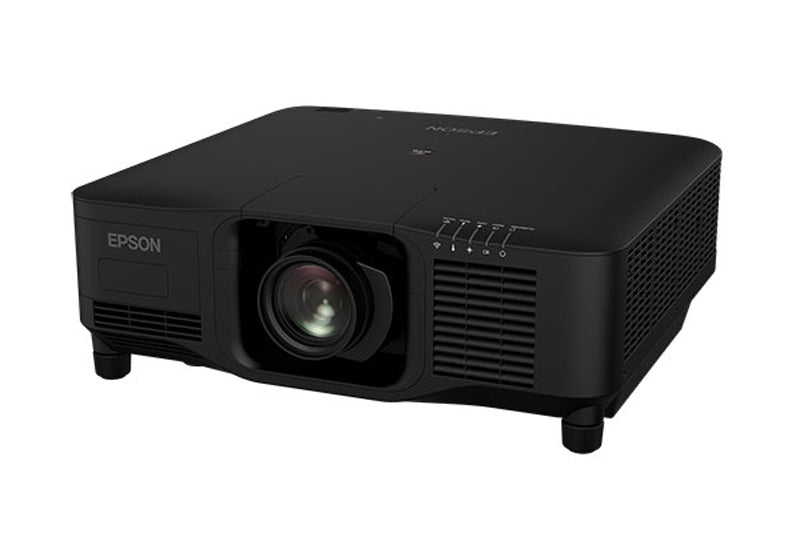

Epson EB-PQ2216B 4K Large Venue 3LCD 16000lm Laser Projector - No Lens

The Epson EB-PQ2216B delivers an outstanding visual experience with 4K Crystal Motion technology, providing exceptional detail, contrast, and colour accuracy. Powered by Epson’s renowned 3LCD, 3-chip technology, it produces up to 3x brighter colours for reliable and vivid projection in any environment.

With a 5,000,000:1 dynamic contrast ratio, HDR support, and scene adaptive gamma, images remain crystal clear and true-to-life, whether for large-scale presentations or immersive visual displays.

Designed for versatility, the EB-PQ2216B is compatible with Epson PU-series lenses, reducing the need for additional lens investments and simplifying system management. Connectivity is future-ready, with 12G SDI and HDMI in/out at 120 Hz, making it suitable for demanding professional applications.

The projector also supports Epson’s advanced software tools, including the ELPEC01 camera, Epson Projector Professional Tool, and Config Tool, for effortless calibration, monitoring, and control.

Built for reliability, the EB-PQ2216B features IP5X-rated dust resistance, up to 20,000 hours of maintenance-free operation, and a signal backup function that ensures uninterrupted performance by automatically switching to a secondary input if needed.

Specifications

Product Name: EB-PQ2216B
Product Code: V11HB04853

Technology

• Projection System: 3LCD

• LCD Panel: 1.04-inch


• Light Source: Laser diode

• Resolution: True 4K (3840 x 2160, 8.3 million pixels)

• Brightness: 16,000 lumens (colour & white)

• Aspect Ratio: 16:9

• Native Contrast Ratio: 3,000:1

• Dynamic Contrast Ratio: 5,000,000:1

• Input Power: 810 W

• Keystone Correction: Vertical ±45°, Horizontal ±30°

• Lens Shift: Vertical ±58%, Horizontal ±16%

Optical

• Zoom Ratio: 1 – 1.61

• Screen Size: 60" to 1000"

• Projection Distance: 100" screen from 3.35 m

• Throw Ratio: 1.52 (wide) – 2.47 (tele)

• Lens F Number: 1.8 – 2.3

• Lens Focal Length: 36 mm – 57.3 mm

• Focus Method: Powered

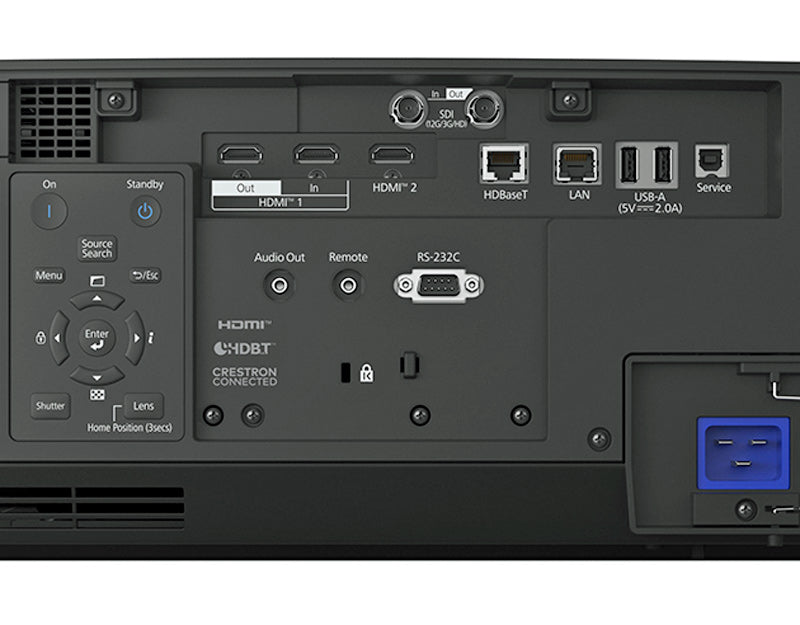

Connectivity

• Digital Inputs: 2 x HDMI, 1 x HDBaseT, 1 x 12G-SDI

• SDI I/O: 1 x BNC

• Control I/O: 1 x RS232C, 1 x stereo mini jack

• Network I/O: 1 x RJ45, 1 x USB Type A (for optional wireless LAN)

• USB: 2 x USB Type A, 1 x USB Type B

• Digital Outputs: 1 x HDMI, 1 x 12G-SDI

• Audio Output: 1 x stereo mini jack

• HDBaseT: Yes

• Wireless Connectivity: Optional

Advanced Features

• Wireless LAN enterprise security (with optional unit)

• Remote access camera support (ELPEC01)

• Fully sealed optical engine & laser light source

• Art-Net support

• Lens position memory

• Edge blending & curved screen projection

• Simple stacking & blending functions

• NFC for easy setup

• Scene Adaptive Gamma

• Frame Interpolation (4K @ 120 Hz)

• Super-Resolution enhancement

• 360° projection capability

• HDR10 & HLG support

• Auto contrast enhancement

• Auto signal backup (HDMI, SDI, HDBaseT)

• Instant Off & Direct Power On

General

• Dimensions (W x D x H, including feet): 586 x 492 x 218 mm

• Weight: 29.2 kg

• Warranty: 5 years

• Power Supply:

  • 100–240 V AC, 50/60 Hz (for 15,500 lm)

  • 200–240 V AC, 50/60 Hz

• Power Consumption: 1114 W (operation), 2 W (standby)

• Noise Level: 44 dB (normal) / 36 dB (eco)

• Security: Kensington® lock, wireless LAN unit lock, cable hole, lens lock

What’s in the Box

• EB-PQ2216B Projector

• 3 m Power Cable

• Remote Control

• 2 x AA Batteries

• Cable Cover

• User’s Guide
