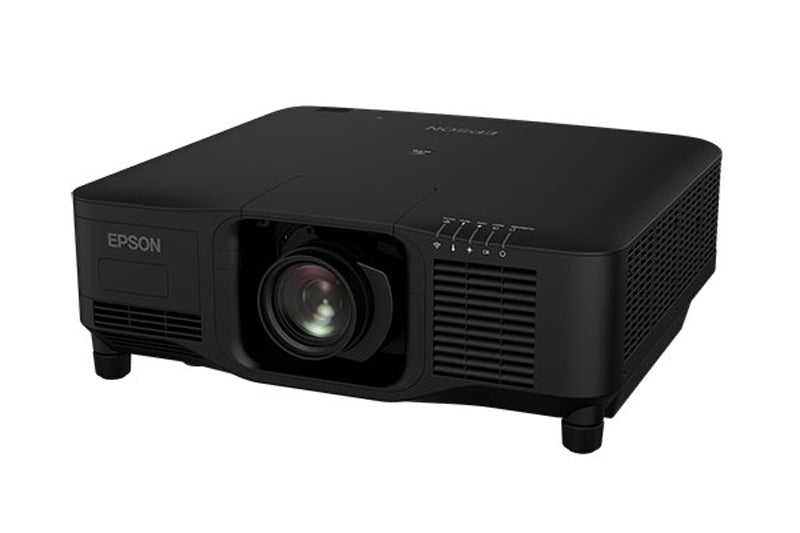

Epson EB-PQ2220B 4K Large Venue 3LCD 20000lm Laser Projector - No Lens

The Epson EB-PQ2220B is the world’s smallest and lightest 20,000-lumen 4K projector, delivering uncompromising brightness, clarity, and reliability in an ultra-compact design. Powered by Epson’s 4K Crystal Motion technology and 3LCD, 3-chip architecture, it produces brilliant true 4K images with up to 3x brighter colours, lifelike detail, and exceptional contrast.

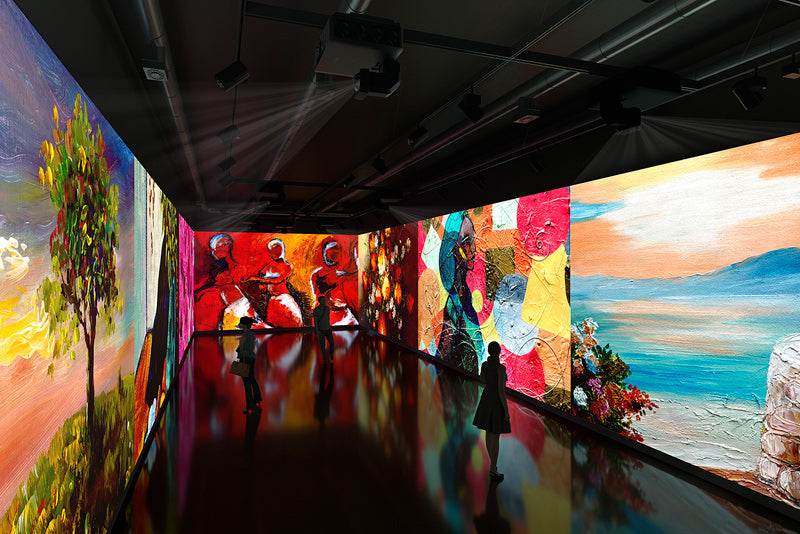

With an impressive 5,000,000:1 dynamic contrast ratio, HDR support, and scene adaptive gamma, every frame is rendered with extraordinary sharpness and depth—ideal for large-scale events, auditoriums, and professional installations.

Designed for flexibility, the EB-PQ2220B is compatible with Epson PU-series interchangeable lenses, helping reduce inventory costs and simplifying management across projector fleets. Connectivity is equally advanced, with support for 12G-SDI and HDMI in/out at 120 Hz for seamless integration into demanding AV environments.

Engineered for professional reliability, this projector includes signal backup functionality to ensure uninterrupted operation during critical events, IP5X-rated dust resistance, and up to 20,000 hours of maintenance-free performance. Combined with Epson’s powerful software tools—including the ELPEC01 camera, Projector Professional Tool, and Config Tool—setup, calibration, and control are fast and intuitive.

The EB-PQ2220B sets a new standard for high-brightness projection, combining power, precision, and efficiency in the most compact form factor in its class.

Specifications

Product Name: EB-PQ2220B
Product Code: V11HB05853

Technology

• Projection System: 3LCD

• LCD Panel: 1.04 inch


• Light Source: Laser diode

• Resolution: 4K (3840 × 2160, 8.3M pixels)

• Brightness: 20,000 lumens (colour & white)

• Native Aspect Ratio: 16:9

• Native Contrast Ratio: 3,000:1

• Dynamic Contrast Ratio: 5,000,000:1

• Keystone Correction: Vertical ±45°, Horizontal ±30°

• Lens Shift: Vertical ±58%, Horizontal ±16%

Optical

• Zoom: 1.0 – 1.61

• Screen Size: 60" – 1000"

• Projection Distance: 100" at 3.35 m

• Throw Ratio: 1.52 – 2.47

• Lens F Number: 1.8 – 2.3

• Lens Focal Length: 36 – 57.3 mm

• Focus Method: Powered

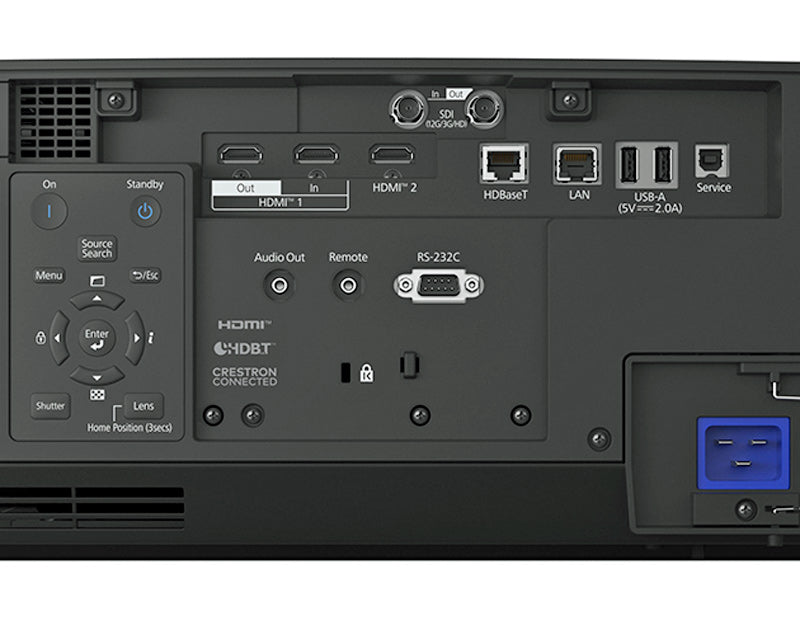

Connectivity

• Inputs: 2 × HDMI, 1 × HDBaseT, 1 × 12G-SDI

• SDI I/O: 1 × BNC

• Control: RS232C, Stereo Mini

• Network: RJ45, USB-A (wireless LAN option)

• USB: 2 × USB-A, 1 × USB-B

• Outputs: HDMI, 12G-SDI, Stereo Mini (audio)

• HDBaseT: Yes

• Wireless: Optional

Advanced Features

• Wireless LAN enterprise security (with option)

• Remote access camera (ELPEC01 support)

• Fully sealed optical engine & laser light source

• Art-Net lighting control support

• Lens position memory

• Edge blending & stacking

• Curved screen projection

• NFC support

• Scene Adaptive Gamma

• Frame Interpolation (4K @ 120 Hz)

• Super-resolution

• 360° projection

• HDR10 & HLG support

• Auto contrast enhancement

• Signal backup (HDMI, SDI, HDBaseT)

• Instant Off / Direct Power On

General

• Dimensions (D × W × H): 492 × 586 × 218 mm

• Weight: 29.2 kg

• Warranty: 5 years

• Power Supply: 100 – 240 V AC, 50/60 Hz

• Power Consumption: 1,431 W (operation), 2 W (standby)

• Noise Level: 48 dB (normal), 39 dB (eco)

• Security: Kensington® lock, wireless LAN lock, cable hole, lens lock

• Colour Modes: Dynamic, Presentation, Cinema, BT.709, Natural, DICOM SIM, Multi-projection

In the Box

• EB-PQ2220B Projector

• 3 m Power Cable

• Remote Control with 2 × AA Batteries

• Cable Cover

• User’s Guide
