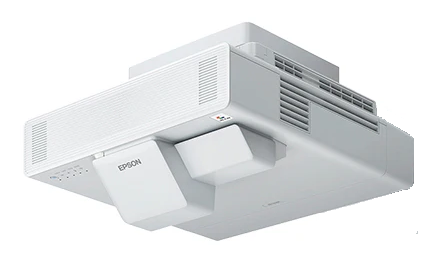

Epson EB-1480Fi Interactive Full HD Ultra Short Throw Laser Projector

The Epson EB-1480Fi is a powerful ultra-short throw interactive laser projector designed for classrooms, meeting rooms, and collaborative workspaces. It delivers bright, Full HD images at 5,000 lumens with both pen and touch interactivity, allowing multiple users to collaborate directly on-screen.

Key Features

• Brilliant 3LCD technology – Up to 3× brighter colours and reliable, consistent performance.

• Large interactive display – Turn any wall or dry-erase board into a 100″ interactive canvas for presentations, lessons, or brainstorming sessions.

• Laser light source – Up to 20,000 hours of virtually maintenance-free operation with instant ON/OFF and high contrast.

• Full HD resolution – Crisp, detailed images up to 100″—over 2× larger than a 70″ flat panel.

• Interactive collaboration – Write, draw, and annotate with pens or optional finger-touch module for natural touch-based input.

• PC-free whiteboard tools – Walk in, power on, and start writing—no computer, software, or training required.

• Capture and share – Save, print, or email meeting notes directly from the projector.

• Wireless connectivity built-in – Pair devices easily, with full support for Miracast screen mirroring.

• Flexible integration – HDMI-out lets you share whiteboard content to larger displays, video conferencing systems, or recording devices.

• Designed for modern spaces – Ideal for classrooms, training spaces, and business collaboration environments.

Additional Information

• Wall mount sold separately.

• Optional finger-touch module (ELPFT01) enables intuitive touch interactivity.

• Built-in wireless connectivity included for seamless device pairing and content sharing.

Specifications

Product Info

• Model: EB-1480Fi

• Product Code: V11H921553

• Technology: Epson 3LCD, 3-chip

• Projection System: RGB liquid crystal shutter

• Light Source: Laser diode

• LCD Panel: 0.62″ C2Fine

Optical

• Zoom: Digital 1.0 – 1.35×

• Screen Size: 65″ – 100″ (16:9)

• Projection Distance: 80″ screen from 48.7 cm

• Throw Ratio: 0.27 (Wide) – 0.37 (Tele)

• Lens: F 1.5, 3.9 mm focal length

• Focus: Manual

• Offset: 8.68 : -1


• Brightness: 5,000 lm (Colour & White)

• Resolution: Full HD (via pixel shifting)

• Aspect Ratio: 16:9 native

• Contrast Ratio: Over 2,500,000:1

• Colour: Up to 1.07 billion colours, 10-bit processing

• Keystone Correction: ±3° vertical / horizontal

• Quick Corner & Auto Setup: Yes

• Split Screen: Yes

• Edge Blending: N/A

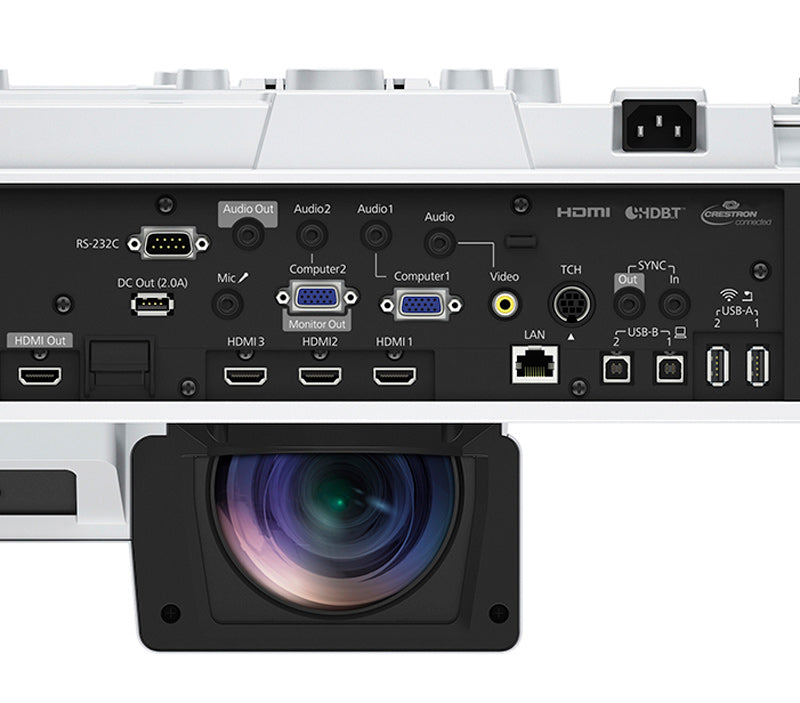

Connectivity

• Video Inputs: 2 × VGA (RGB D-sub 15-pin), 1 × RCA Composite

• Video Output: 1 × VGA (shared)

• Digital Inputs: 3 × HDMI

• Digital Output: 1 × HDMI

• Audio In: 3 × Stereo mini + 1 × Mic-in (mini)

• Audio Out: 1 × Stereo mini

• USB:

  • 2 × Type-A (USB memory, doc camera, firmware, OSD copy)

  • 1 × Type-A DC Out (2.0 A)

  • 2 × Type-B (USB display, control, interactive, firmware, OSD copy)

• Control I/O: RS-232C, interactive sync in/out, touch control (Mini DIN 8-pin)

• Network: 1 × RJ-45 LAN (100 Mbps), built-in Wi-Fi & Miracast

• Optional Wireless LAN (ELPAP11): Enables simultaneous Miracast + Wi-Fi

• Speaker: 2 × 8 W stereo

Advanced Features

• Interactivity:

  • Dual pen support (included)

  • Optional finger-touch module (up to 6 users)

• PC-Free Whiteboard & Annotation Tools: Yes

• Software: Epson Projection Management, Easy Interactive Tools (Win/Mac)

• Control Protocols: Crestron, Extron, AMX, Control4

• Wireless Security: WPA2/WPA3 (PSK & EAP)

• Convenience: Instant Off, Direct Power On, Auto Power On (HDMI/USB)

• Colour Modes: Dynamic, Presentation, Cinema, sRGB, Blackboard, DICOM SIM, Multi-Projection

• Security: Kensington® lock, padlock & cable slot, LAN unit lock, password protection

• Wall Mount: Optional (ELPMB62)

General

• Dimensions (W × H × D): 458 × 209.5 × 375 mm (excluding feet)

• Weight: ~9.7 kg

• Warranty: 3 Years (projector)

• Power Consumption: 366 W (Normal), 262 W (Quiet), 2 W (Standby)

• Noise Level: 36 dB (Normal), 27 dB (Quiet)

What’s in the Box

• Epson EB-1480Fi Projector

• Power Cable (1.8 m)

• USB Cable (1.8 m)

• Remote Control + 2 × AA batteries

• 2 × Easy Interactive Pens + Batteries, Pen Stand, Pen Tip Holder

• Pen Tips (4 × Soft, 2 × Hard)

• Corner Markers (with setup tools)
