inDESIGN EZ 5-10 MK2 - Super fast in/out, two way coaxial ceiling speaker
inDESIGN EZ 5-10 MK2 - Super fast in/out, two way coaxial ceiling speaker is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The EZ Fit 5.25" Coaxially Loaded 2-Way Speaker delivers clear, balanced sound in a compact and easy-to-install design. Engineered for both commercial and residential installations, this versatile speaker features a silk dome tweeter, 100V line transformer, and the latest EZ-TAP and EZ-BLOCK connection systems for quick setup and reliable performance.
Key Features
-

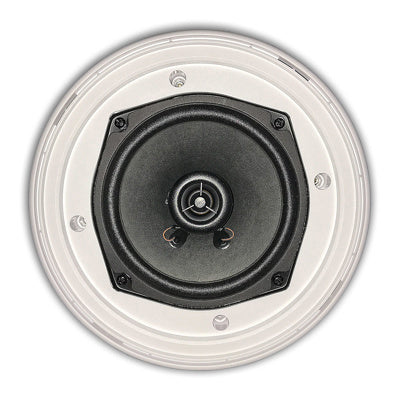

Smooth, natural sound from a 5.25" paper cone mid-range driver and 13mm PEI dome tweeter
-
Selectable power taps at 10W, 5W, 2.5W, 1.25W, or 8-ohm bypass at 20W RMS
-

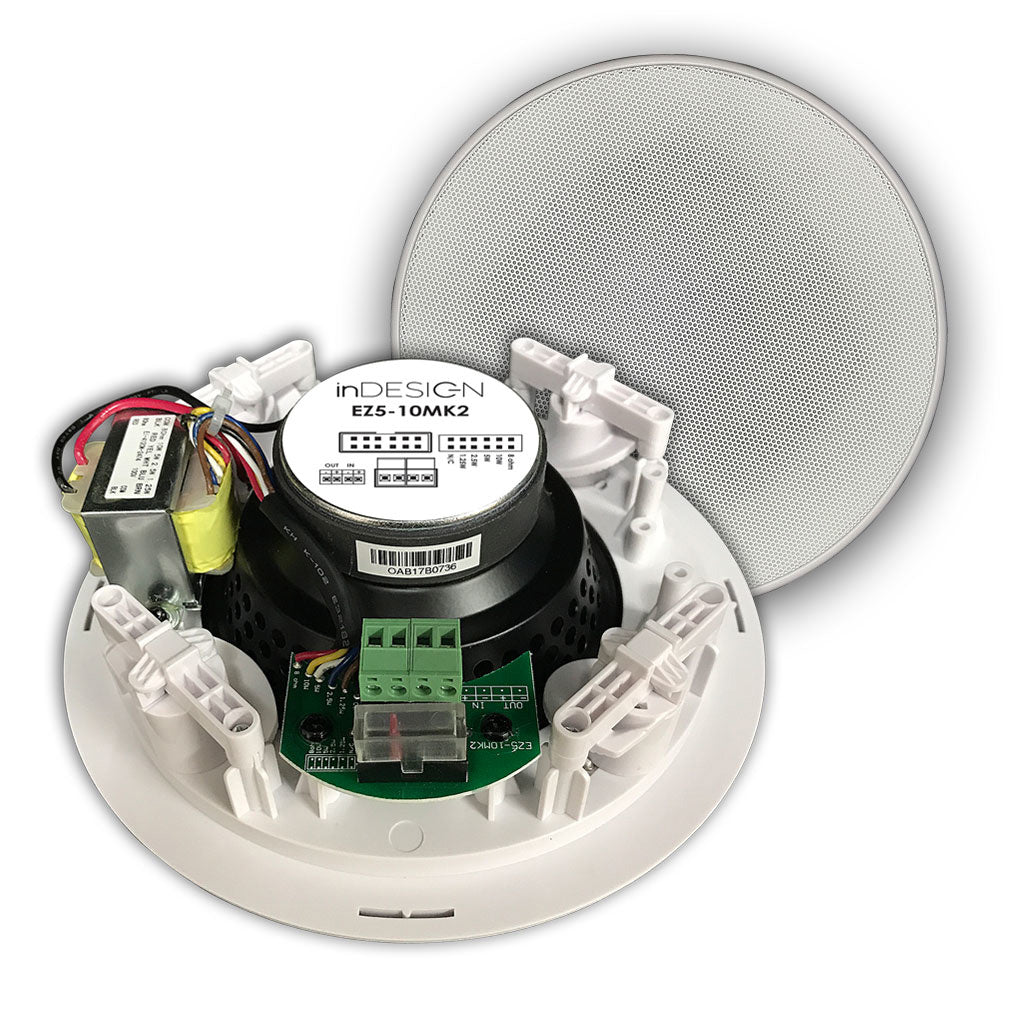

Easy installation using the new EZ-TAP selector and EZ-BLOCK speaker terminals
-
Built-in 22uF inline supervisory capacitor for system safety and reliability
-
Lightweight at only 1kg, ideal for ceiling or wall mounting
-
Wide frequency response (55Hz – 20kHz ±5dB) and high sensitivity (87–88dB SPL @ 1W/1m)
Specifications
| Specification | Details |
|---|---|
| Speaker Size | 5.25" (133mm) coaxial 2-way |
| Power Handling | 20W RMS @ 8Ω |
| Transformer Taps | 10W / 5W / 2.5W / 1.25W / 8Ω |
| Sensitivity | 87–88dB (1W/1m) |
| Frequency Response | 55Hz – 20kHz (±5dB) |
| Impedance | 8 ohms |
| Tweeter | 13mm PEI dome |
| Midrange | Paper cone |
| Connection | 4-pin connector for speaker line in/out with jumper wattage selection |
| Environmental Tests | Cold: −25°C (16h) / Heat: +70°C (16h) |
| Weight | 1kg |
| Finish | White |
