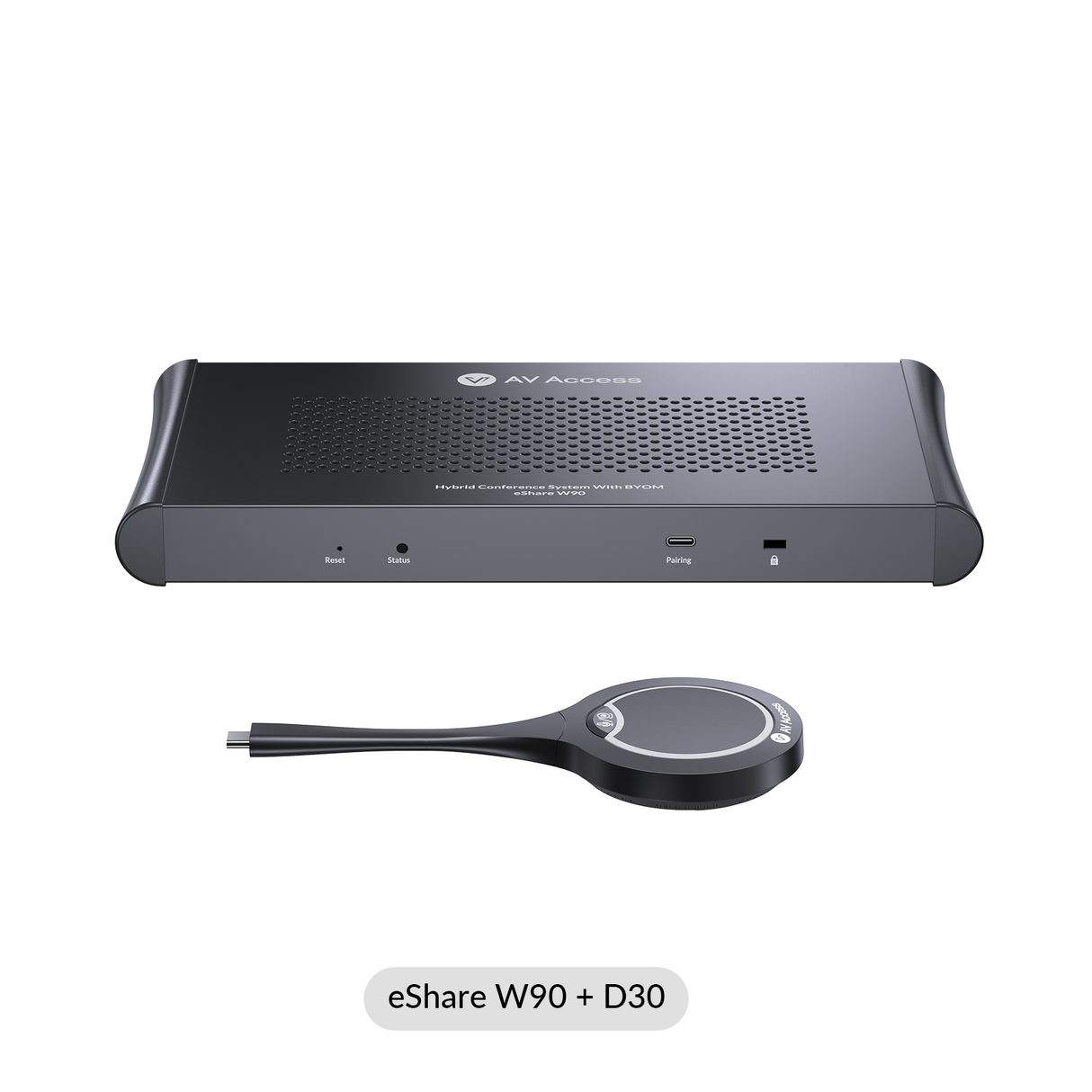

AV Access eShare W90 Wireless 4K Presentation & Conferencing System

Base Unit + eShare D30 USB-C Wireless Dongle Included

The AV Access eShare W90 is a professional 4K wireless presentation and BYOD conferencing system designed for small to medium-sized meeting rooms. It provides seamless wireless screen sharing, dual-display output, and one-click USB conferencing — all in a simple, reliable platform.

This kit includes the eShare D30 USB-C wireless dongle, enabling instant wireless conferencing and control of USB 3.0 peripherals such as cameras, speakerphones and video bars.

Key Features

• 4K Wireless Presentation – Supports up to 4K resolution output

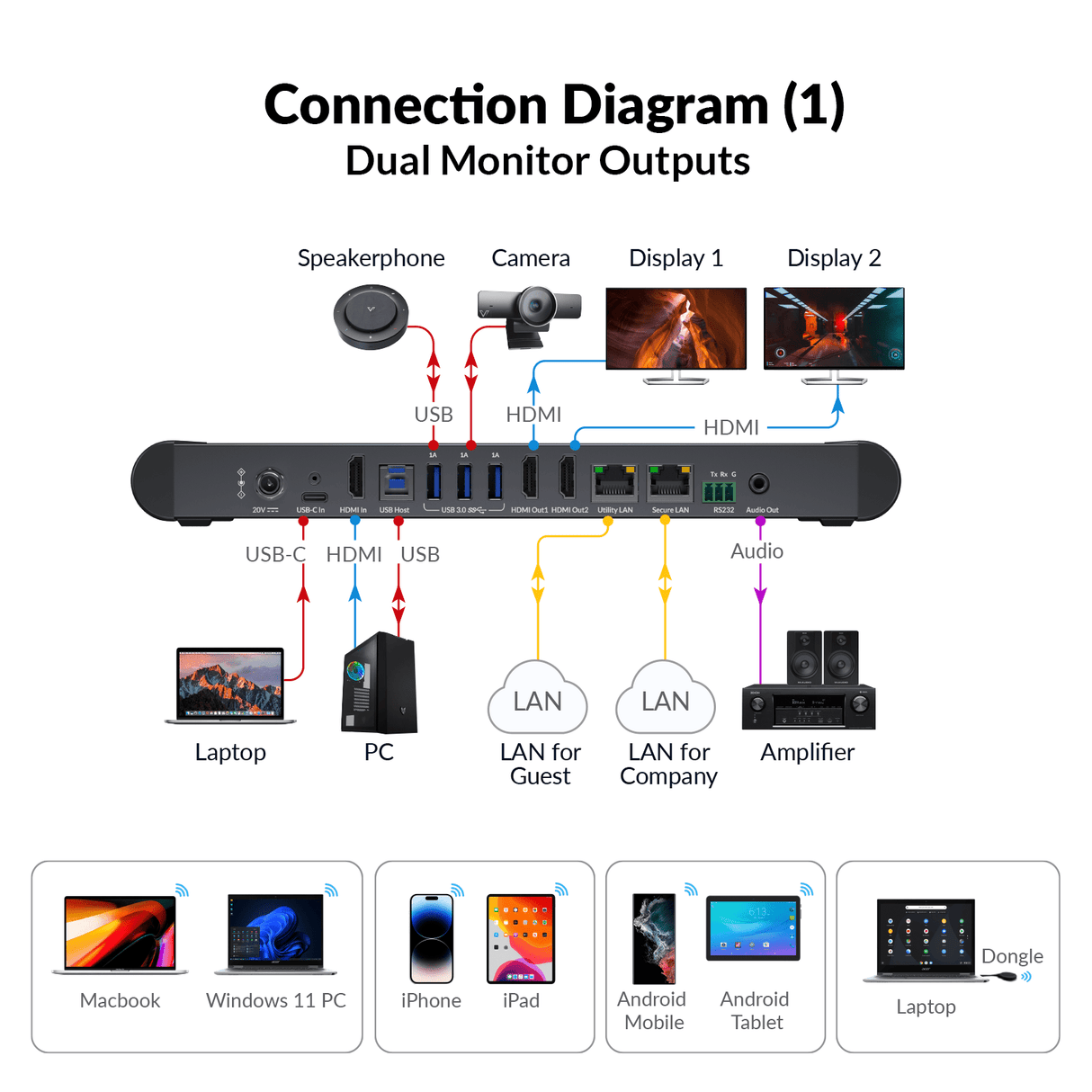

• Dual HDMI Outputs – Drive two 4K displays simultaneously

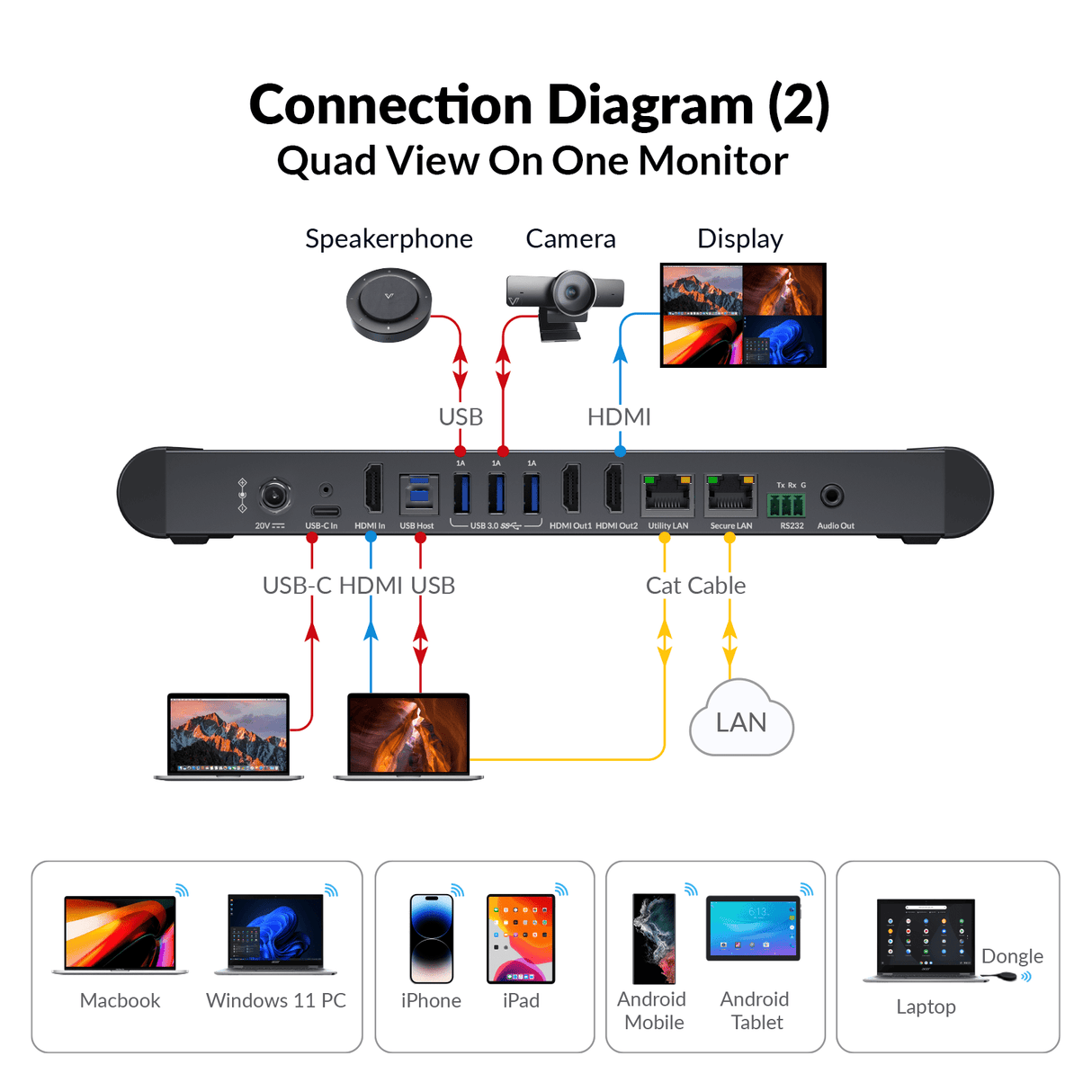

• Quad View Mode – Display up to four sources on one screen

• All-in-One USB-C Connection – Video, audio, data, network and 65W laptop charging

• One-Click Wireless Conferencing – Pair with the included D30 dongle

• USB 3.0 Peripheral Control – Wirelessly access room cameras and audio devices

• Dual Gigabit Ethernet Ports – Secure internal and guest network separation

• Multiple Connectivity Options – AirPlay, Miracast, USB-C, HDMI and wireless dongle

Included in This Kit

• eShare W90 Wireless Presentation Hub

• eShare D30 USB-C Wireless Conferencing Dongle

• Power supply and required connection cables

Ideal Applications

• BYOD meeting rooms

• Corporate boardrooms

• Training and education spaces

• Hybrid collaboration environments

• Client presentation rooms

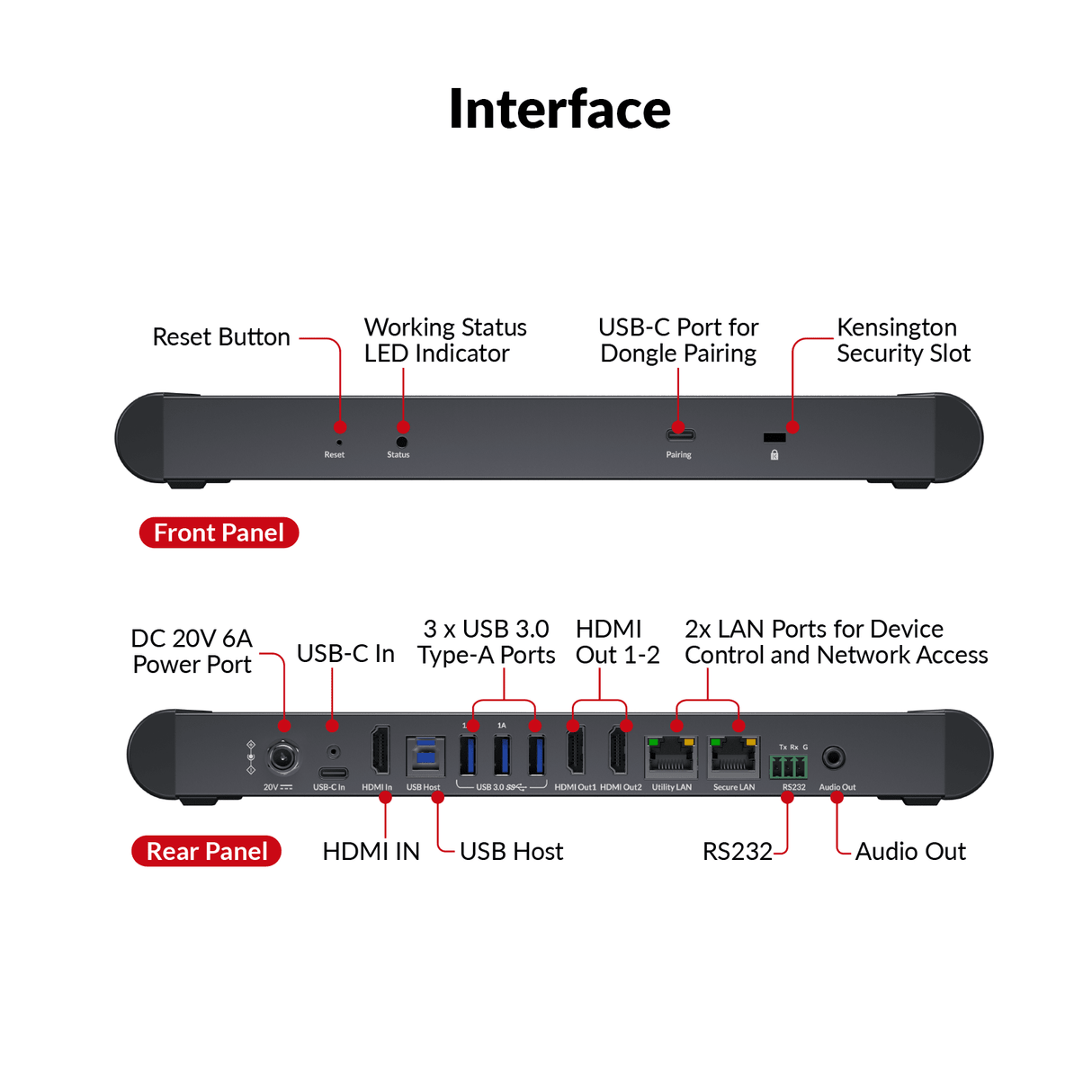

Technical Overview

• Video Input: 1× HDMI, 1× USB-C

• Video Output: 2× HDMI (up to 4K)

• USB Ports: 3× USB 3.0 Type-A

• Network: 2× Gigabit Ethernet

• Wireless: Dual Wi-Fi modules (2.4GHz & 5GHz)

• Power Delivery: 65W via USB-C

4K wireless presentation (up to 4K@60Hz)
Dual HDMI outputs (dual display support)
Quad view (up to 4 sources on screen)
Included USB-C dongle for one-click conferencing
USB-C with 65W laptop charging
AirPlay & Miracast support
Dual Gigabit LAN ports for secure networking
3× USB 3.0 ports for camera & audio control
