AVer CAM550 Dual-Lens 4K USB PTZ Conferencing Camera with AI Framing

The AVer CAM550 is a premium dual-lens 4K USB PTZ conferencing camera designed for hybrid meetings in medium to large rooms. Equipped with a 12× optical zoom PTZ lens and an AI panoramic lens with 95° field of view, it captures both the speaker and the entire room with crystal-clear detail.

With advanced AI framing, Smart Gallery, and gesture control, the CAM550 automatically adjusts to highlight active speakers or individual participants—ensuring a professional video experience without manual operation.

Seamless connectivity via USB, HDMI, IP streaming, and PoE+ makes integration easy, while certification with platforms like Zoom, Microsoft Teams, and Google Meet guarantees compatibility. Combined with robust remote management tools and a 3-year warranty, the CAM550 is a reliable, future-ready solution for enterprise video collaboration.

Camera & Image Quality

Dual 4K lenses: one PTZ (with 12× optical zoom, 2× digital; total 24× zoom) and one fixed AI panoramic lens with a 95° field of view (FOV)
communication.aver.com

Sony 4K EXMOR image sensors deliver sharp visuals in all lighting

Resolution & frame rates:

4K @ 30 fps; HD resolutions (1080p, 720p, etc.) at 60/30/15 fps
videoconferencingaustralia.com.au
+15
averusa.com
+15
also.com
+15
.

Wide FOV (PTZ): approx. 85° diagonal, 76° horizontal, 46° vertical
averusa.com
+3
Manua.ls
+3
Manual.nz
+3
.

Lens specs: focal length 3.9 mm (wide) to 47.3 mm (tele); aperture F1.8–F2.8
Manual.nz
+3
Manua.ls
+3
averusa.com
+3
.

Smart AI Features

Dynamic auto framing: AI lens detects participants, prompting the PTZ lens to reframe dynamically
communication.aver.com
+9
averusa.com
+9
averusa.com
+9
.

Smart Gallery: auto crops to display participant headshots or half-body shots—requires PTZApp 2
communication.aver.com
+9
averusa.com
+9
averusa.com
+9
.

Gesture control: non-touch operation via a raised finger; must be enabled via PTZApp 2
averusa.com
+5
averusa.com
+5
averusa.com
+5
.

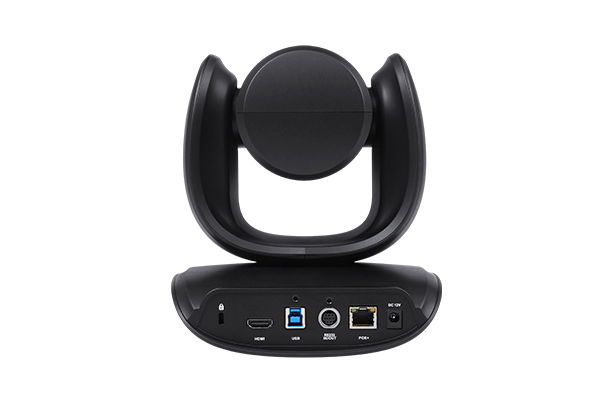

Connectivity & Outputs

Simultaneous 3‑way output: USB (Type‑B 3.1 Gen 1, backward compatible with USB 2.0), HDMI (with Picture‑in‑Picture support), and IP streaming (RTSP/RTMP)
Manual.nz
+5
averusa.com
+5
averusa.com
+5
.

Additional options: cableless “virtual USB streaming” over IP, and integration with 3rd‑party ceiling mics via AVer Preset Link
communication.aver.com
+8
averusa.com
+8
averusa.com
+8
.

Pan/Tilt & Presets

Motorized pan: ±170°; tilt: +90° to −30°
communication.aver.com
+7
averusa.com
+7
averusa.com
+7
.

Supports 10 presets via remote; 128 via RS‑232 (VISCA)
averusa.com
+3
averusa.com
+3
averusa.com
+3
.

Software Tools & Management

Compatible with PTZApp 2: AI features, virtual streaming, Preset Link, system control and diagnostics
averusa.com
+5
averusa.com
+5
averusa.com
+5
.

EZManager 2 for centralized group camera management and firmware updates
averusa.com
+1
.

EZLive: multi-camera streaming, annotation, and recording
averusa.com
+1
.

Body & Mounting

Kensington lock and ¼″ tripod-mount compatible
averusa.com
+1
.

Includes wall-mount bracket; optional ceiling or foldable TV mounts available (Note: ceiling installation requires AVer ceiling mount)
Qualcomm
+14
averusa.com
+14
videoconferencingaustralia.com.au
+14
.

Dimensions & Weight

Camera: approx. 170.8 mm (W) × 190.5 mm (H) × 173 mm (D); weight ~2.1 kg
Manual.nz
+3
Manua.ls
+3
averusa.com
+3
.

Package: ~253 × 253 × 271 mm; weight ~4.8 kg
averusa.com
+1
.

Power & Environmental

Powered via AC (12 V, 2 A) or PoE+ (802.3at)
Manual.nz
+4
averusa.com
+4
averusa.com
+4
.

Operating temperature: 0 – 40 °C; storage: −20 – 60 °C; humidity: 20 – 80%
averusa.com
+3
Manua.ls
+3
Manual.nz
+3
.
