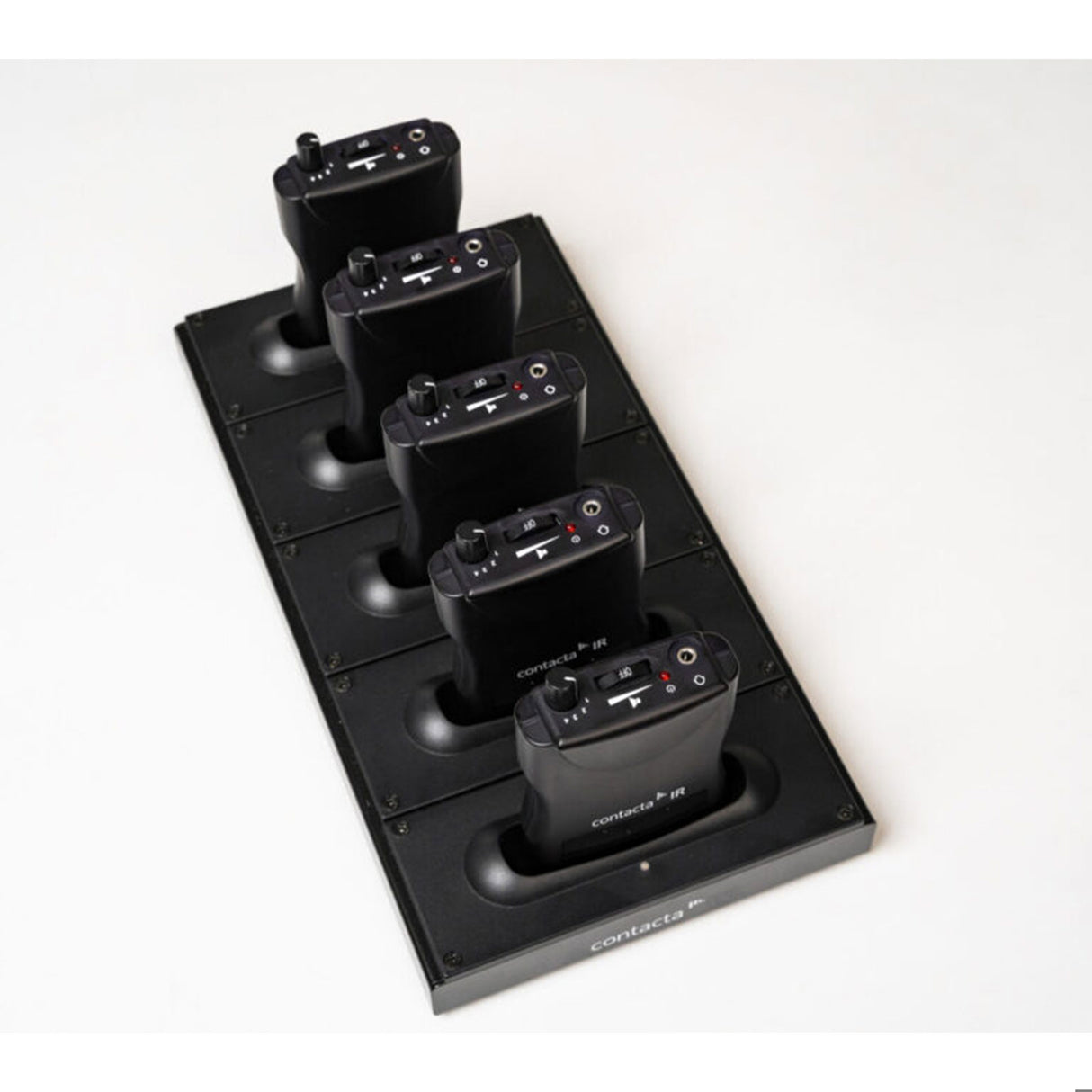

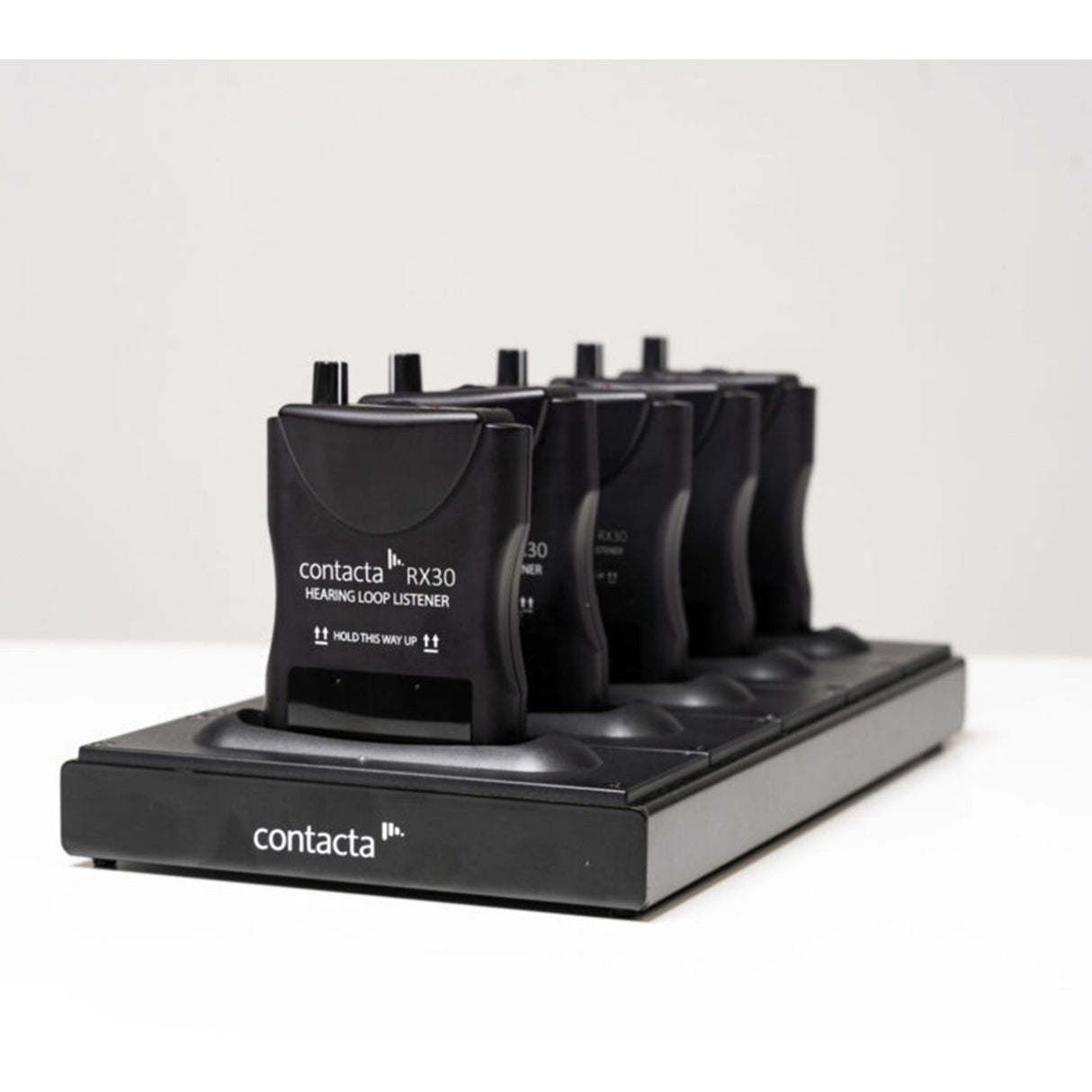

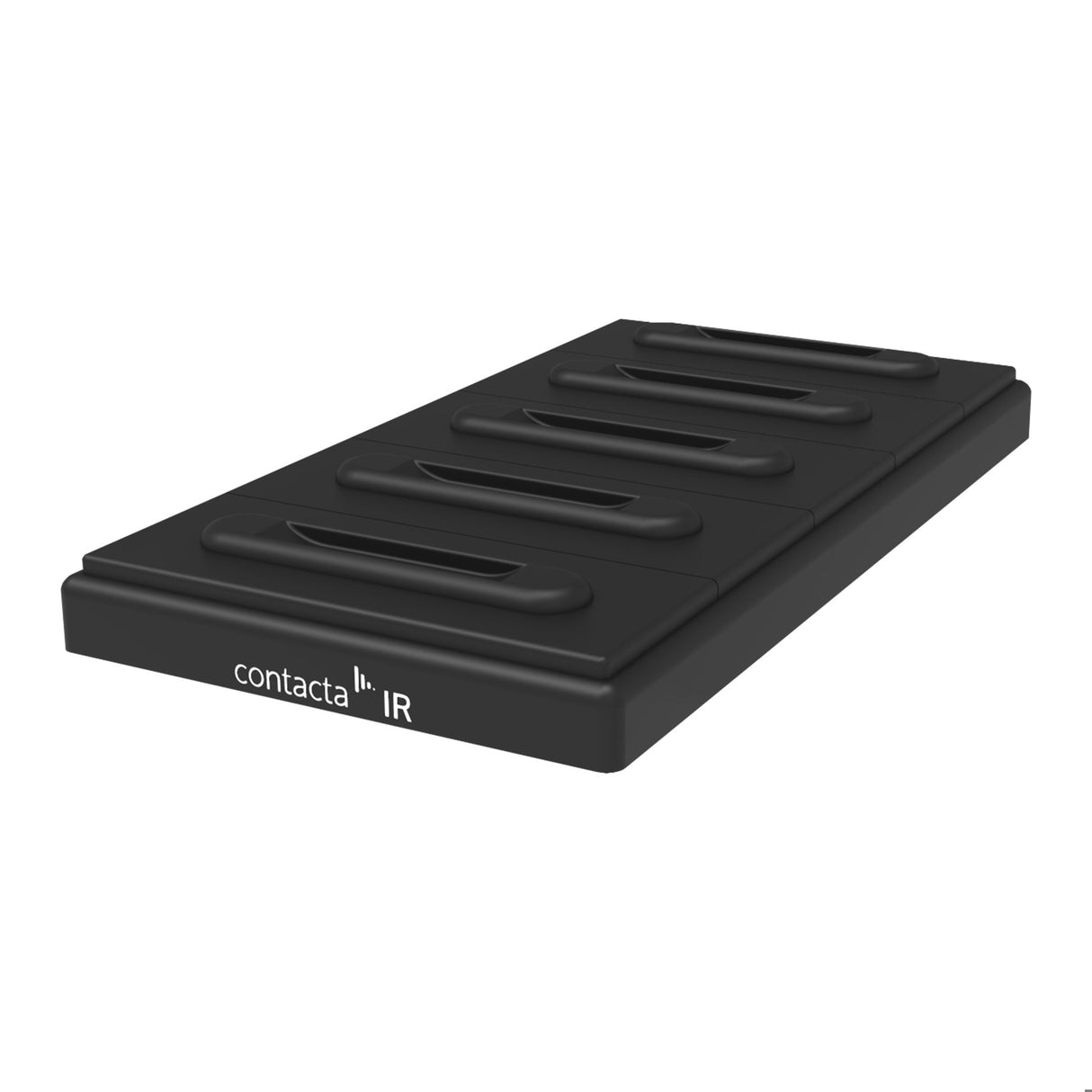

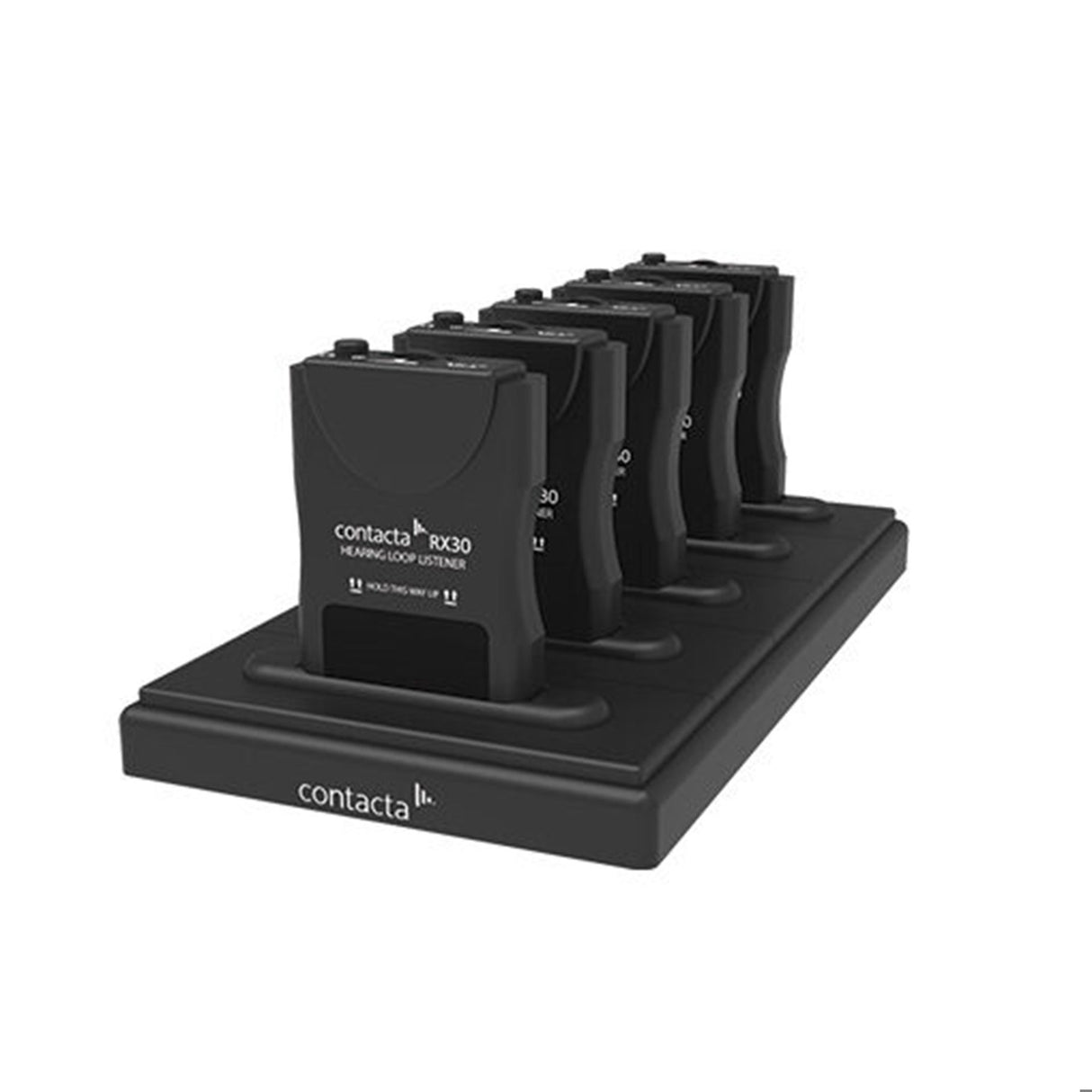

Contacta IR-RX2-DC5 Five Bay Drop-In Charger for IL-RX30 & IR-RX2 Packs

The Contacta IR-RX2-DC5 is a five bay drop-in charger designed to suit both the IL-RX30 rechargeable hearing loop listener and the IR-RX2 portable infrared receiver.

Perfect for larger installations, up to four chargers can be daisy chained together to accommodate up to 20 receiver packs. To link multiple chargers, a PS-LINK-2.1 cable is required for each additional IR-RX2-DC5 unit.

Example configurations:

• 10 bay setup – 2 charging bays, 1 PSU, 1 linking cable

• 15 bay setup – 3 charging bays, 1 PSU, 2 linking cables

• 20 bay setup – 4 charging bays, 1 PSU, 3 linking cables

This multi-bay charging system is ideal for environments where multiple receivers are in use, such as conferences, theatres, and places of worship.

Applications

• Conference & Meeting Rooms

• Cinemas & Theatres

• Courts

• Lecture Halls, Schools & Universities

• Places of Worship

Specifications

• Dimensions: H 38mm (1.49”) × W 160mm (6.29”) × D 305mm (12.0”)

• Weight: 540g (1.19lbs)

• Finish: Black

• Power Supply: 12V DC 1000mA (12V DC 3000mA required for daisy chaining)
