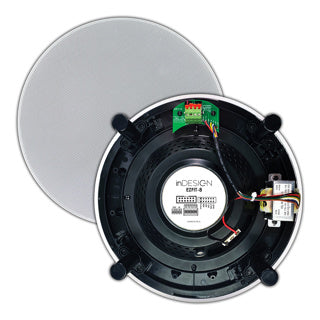

inDESIGN EZFIT-8 - Tool-less install, 8" two way coaxial ceiling speaker

The EZFIT-8 8" Coaxially Loaded 2-Way Ceiling Speaker combines a coaxial driver, frameless magnetic grille and tool-less installation, making it one of the fastest ceiling speakers on the market to fit off. A supervisory capacitor is fitted as standard, allowing direct integration into evacuation systems.

A cost-effective choice for BGM, paging and EVAC duty, the EZFIT-8 suits function rooms, school halls, retail spaces, boardrooms, places of worship, RSLs, clubs, pubs, restaurants and a wide range of other commercial applications.

Key Features

• 8" paper cone mid-range driver paired with a 13mm PEI dome tweeter
• Selectable 100V line taps at 30W, 15W, 7.5W, 3.75W and 1.875W, plus 8-ohm bypass at 30W RMS

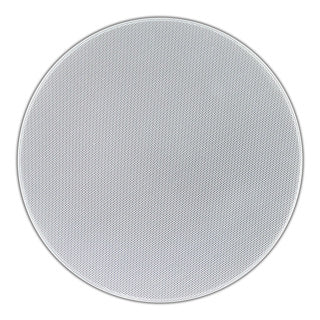

• Frameless magnetic grille and tool-less installation for fast fit-off
• Supervisory capacitor fitted as standard for evacuation system integration

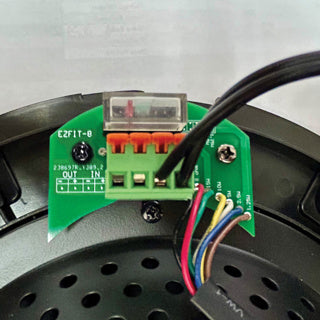

• 4-pin quick connect with 5.08mm Euro Block for loop-through wiring
• Wide frequency response (62Hz - 20kHz ±5dB) at 88dB SPL @ 1W/1m

Specifications
