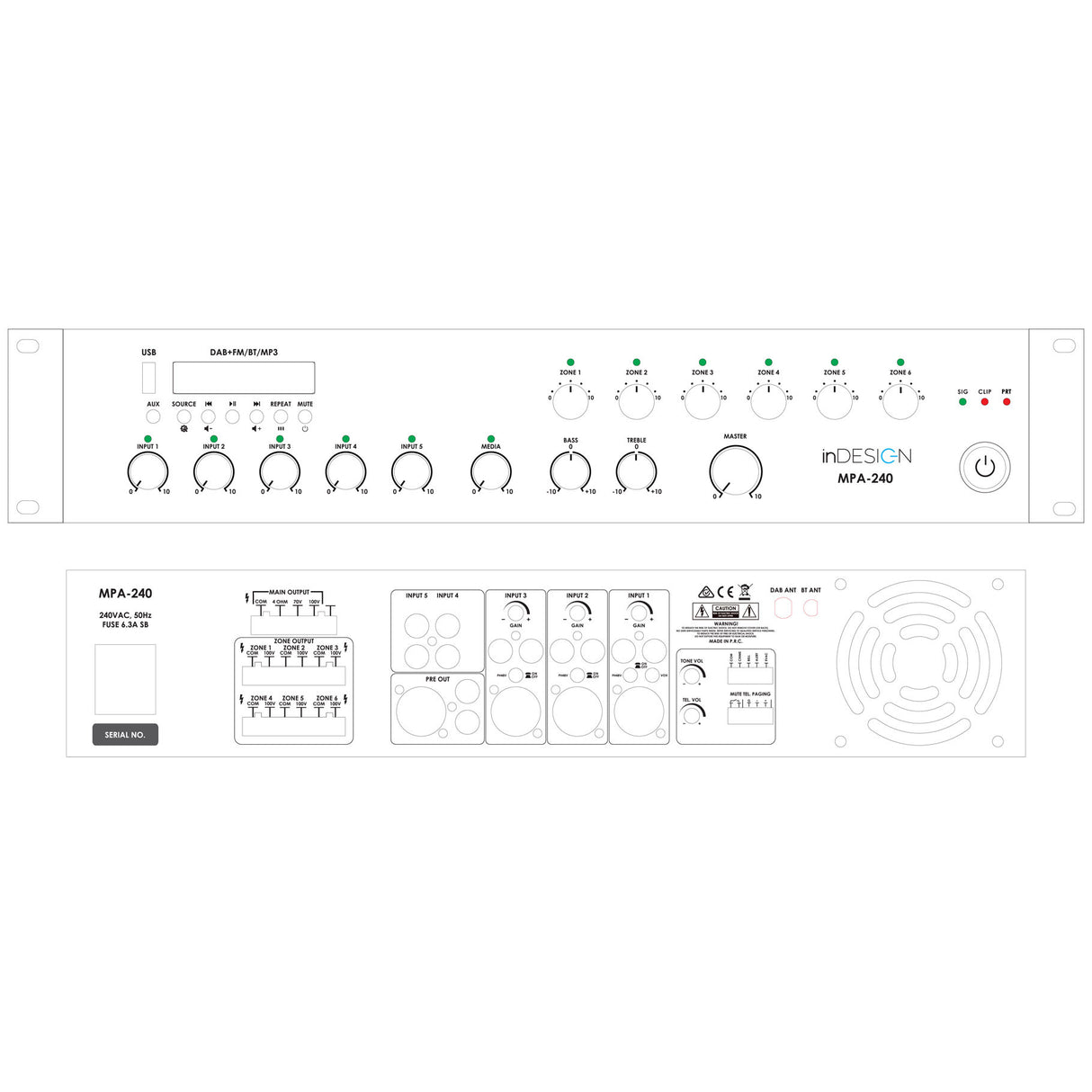

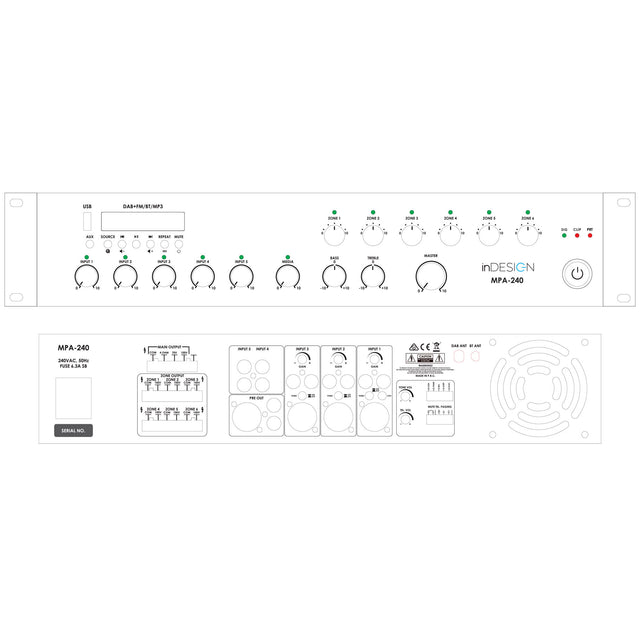

inDESIGN MPA-240 240W 6-Zone Mixer Amplifier (2RU)

The inDESIGN MPA-240 is a 240W multi-zone mixer amplifier built for installations that need independent audio control across multiple areas. Alongside a 100V/70V/4Ω master output, it provides 6 global zone outputs, each with its own 5-step attenuator (up to 200W per zone @ 100V).

Six input channels - three balanced mic/line with 24V phantom power (channel 1 with VOX priority) and three unbalanced line - feed into the mixer, along with a transformer-isolated telephone paging input and onboard tone generator (chime, bell, alert, evac). A built-in media player adds DAB+/FM radio, USB (MP3/WMA) playback and Bluetooth 5.3 streaming with a renameable device ID.

• Power output: 240W RMS @ 100V/70V/4Ω
• 6 independently adjustable 100V zone outputs (5-step attenuator, 200W max per zone)
• 6 input channels (3x balanced mic/line w/ phantom power, 3x unbalanced line)
• Built-in DAB+/FM tuner, USB (MP3/WMA) and Bluetooth 5.3 playback
• Transformer-isolated paging input with VOX priority override
• Onboard tone generator: chime, bell, alert, evac
• 2RU chassis, 485 x 88 x 350mm, 10kg
