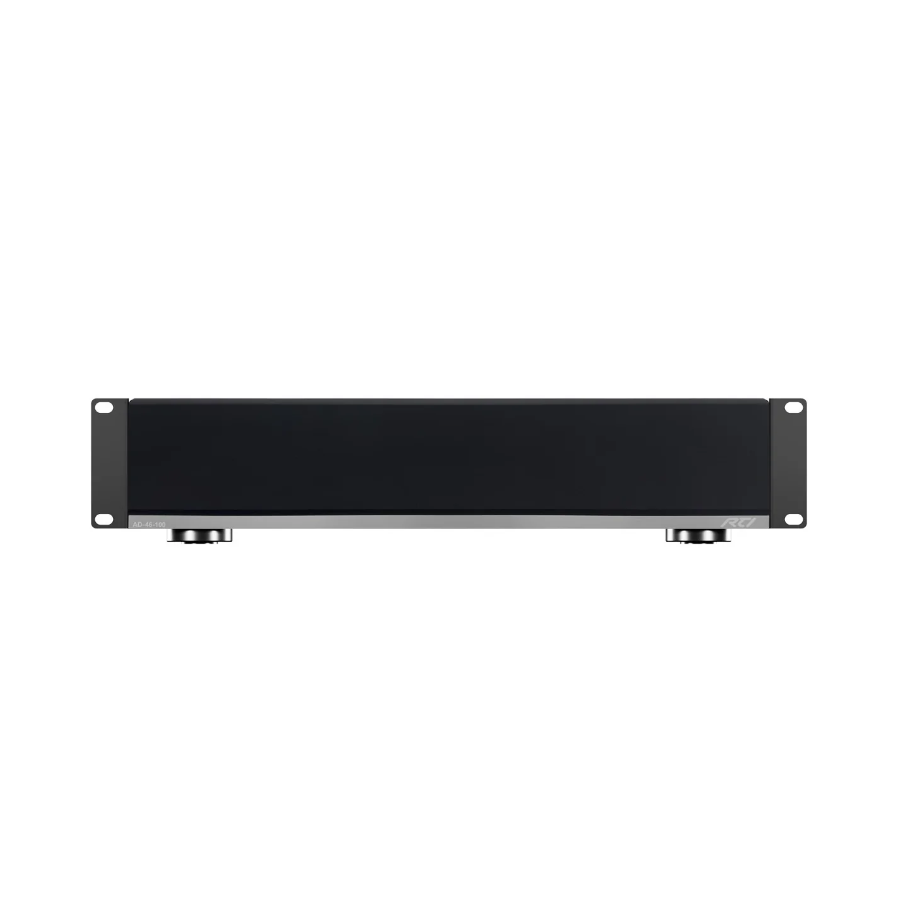

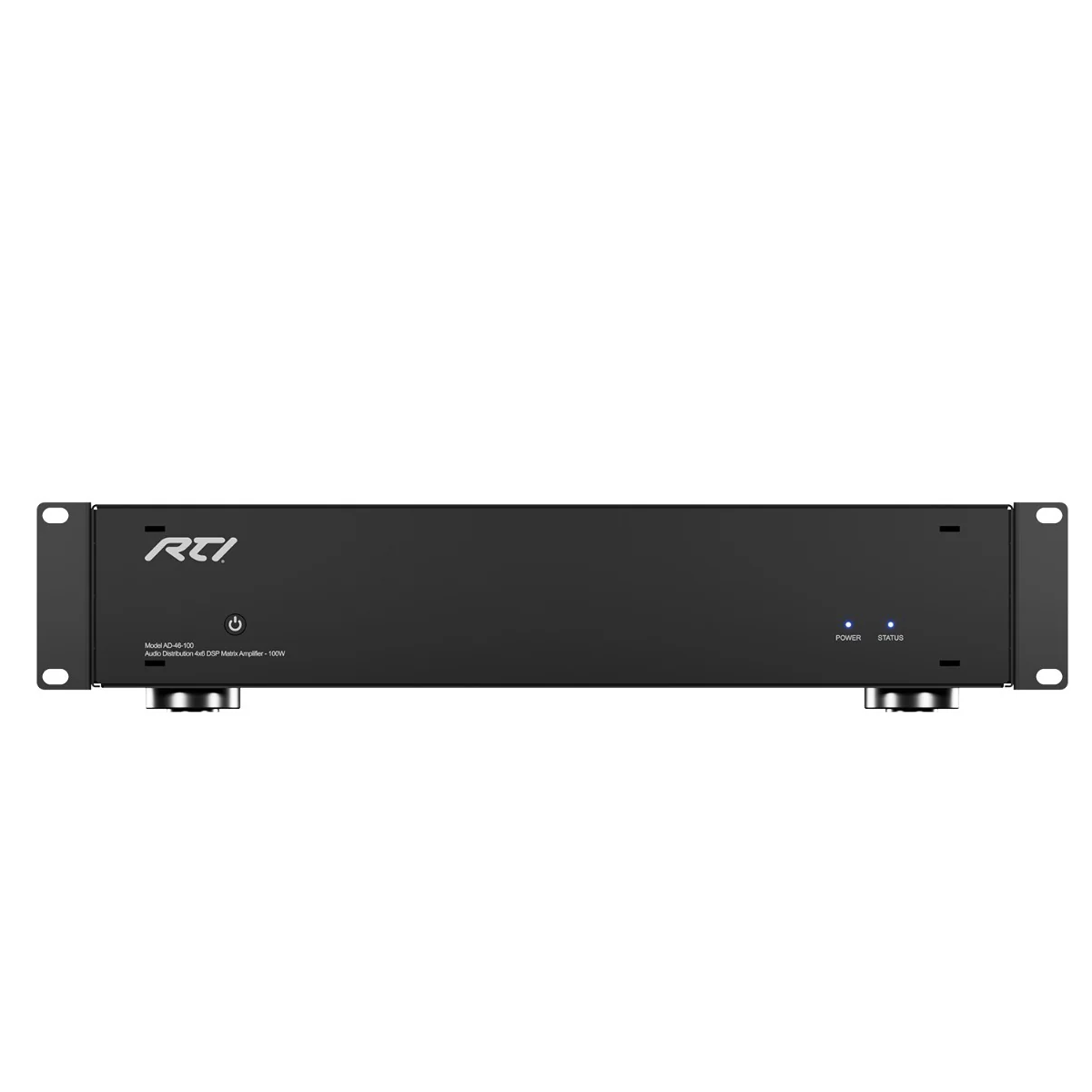

RTI AD46-100 4x6 DSP Audio Matrix Amplifier

The RTI AD46-100 is a 4x6 DSP matrix amplifier that distributes up to four audio sources across six independently controllable zones, with both amplified and preamp outputs for mixed powered/unpowered zone setups.

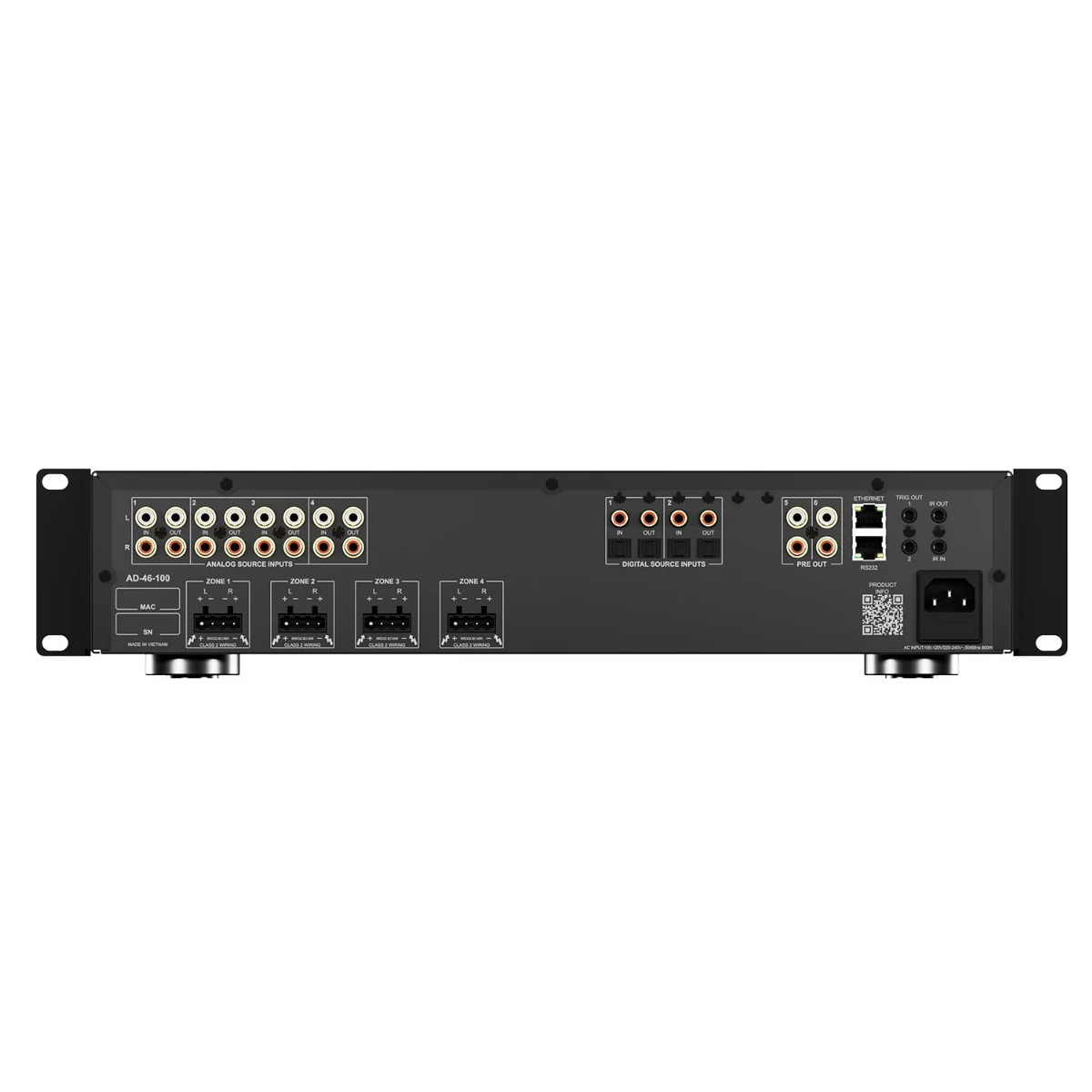

Four analog source inputs and two mirrored digital inputs feed the matrix, routing to four amplified stereo zones (100W per channel @ 4Ω, Class D) plus two preamp stereo outputs for driving external power amps. The system is expandable up to 48 zones for larger installs, with control over RS-232, IP and IR to integrate directly with RTI processors.

• 4 analog + 2 mirrored digital audio source inputs
• 6 stereo output zones (4 amplified, 2 preamp)
• Class D amplification: 100W @ 4Ω per channel per zone
• Expandable up to 48 zones
• RS-232, IP and IR control, integrates with RTI systems
