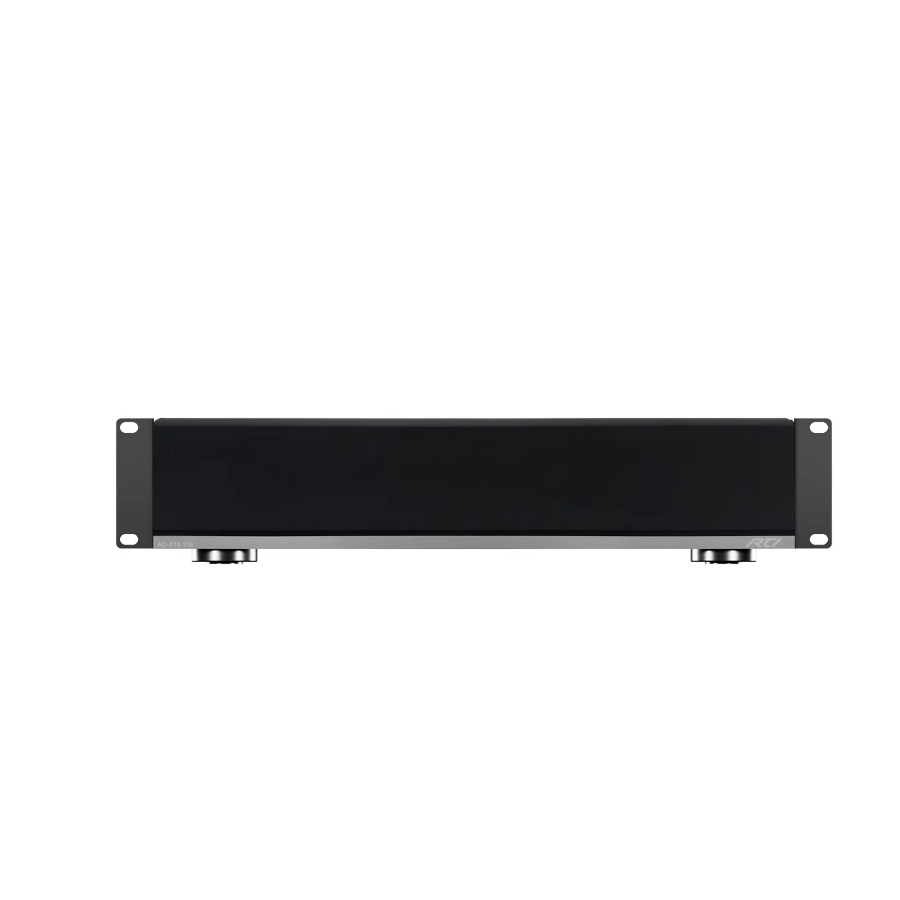

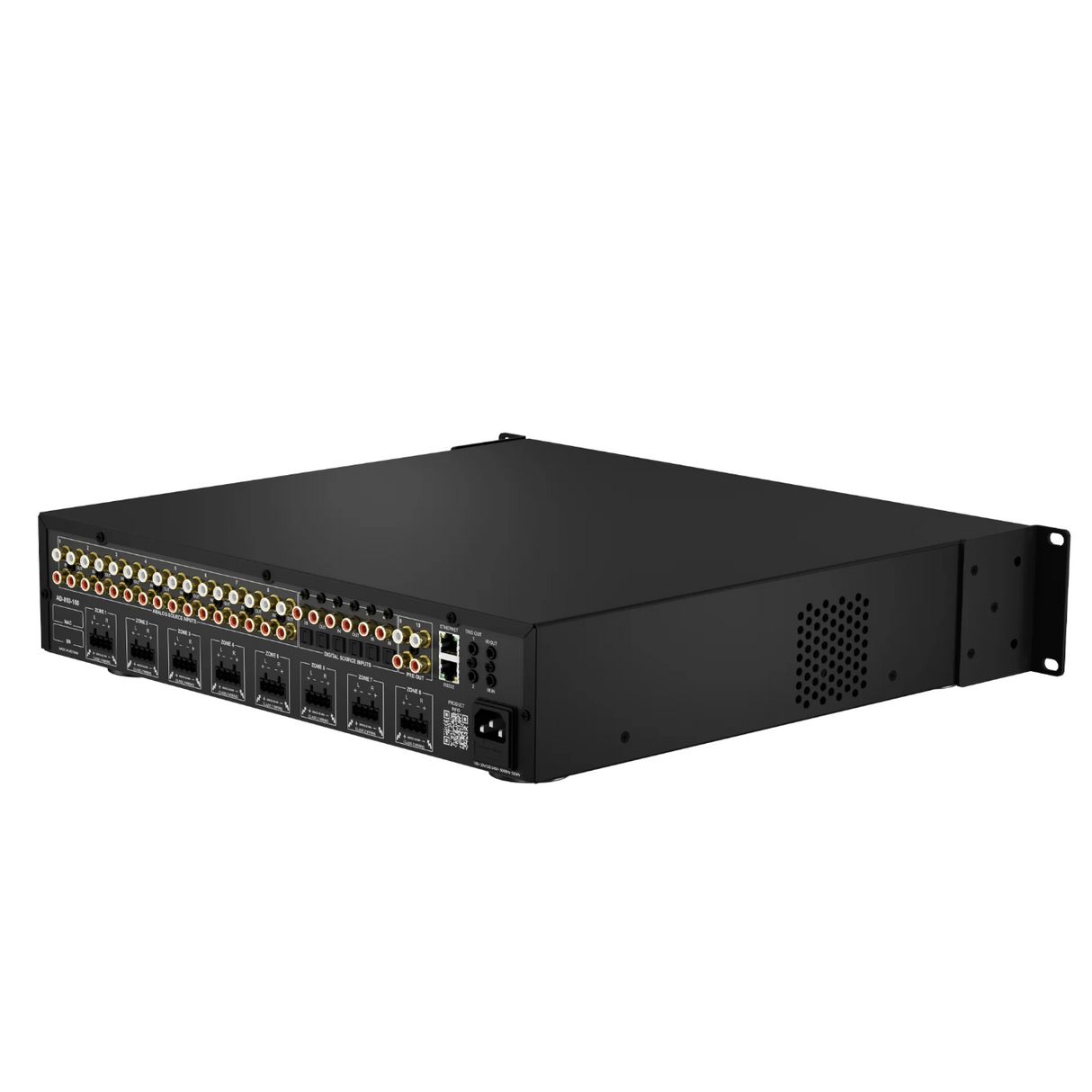

RTI AD810-100 8x10 DSP Audio Matrix Amplifier

The RTI AD810-100 is an 8x10 DSP matrix amplifier built for larger multi-zone installs, distributing up to eight audio sources across ten independently controllable zones with both amplified and preamp outputs.

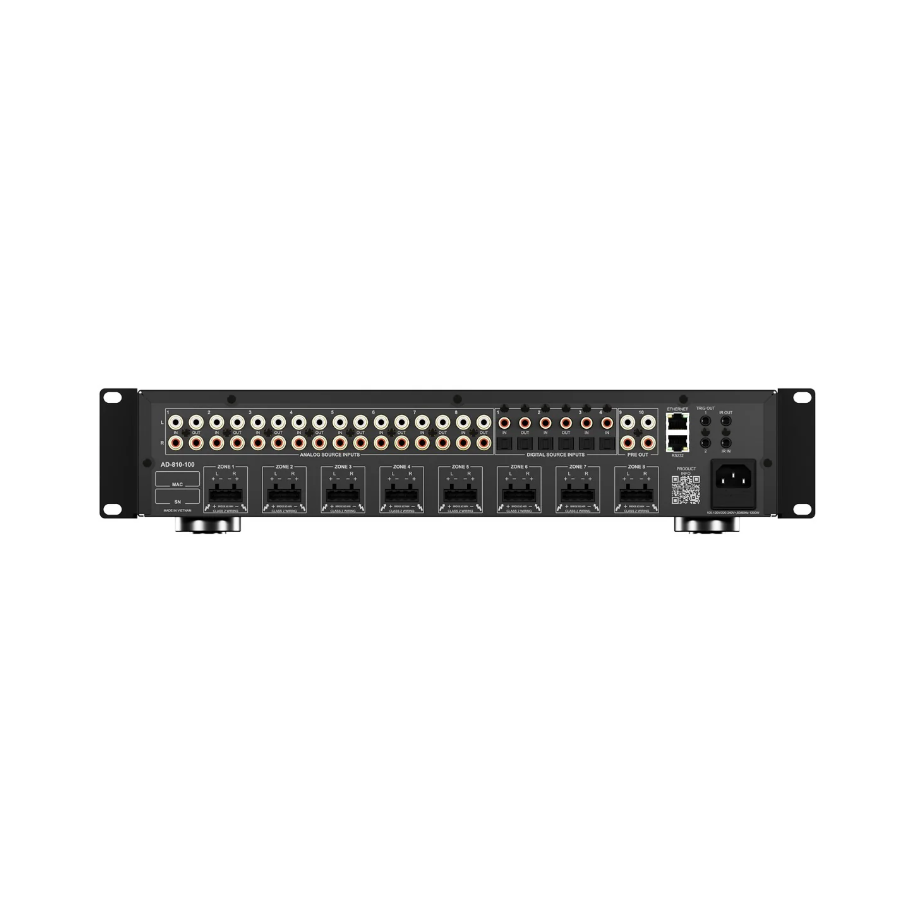

Eight analog source inputs and four mirrored digital inputs feed the matrix, routing to eight amplified stereo zones (100W per channel @ 4Ω, Class D) plus two preamp stereo outputs for driving external power amps. The system is expandable up to 80 zones for large-scale installs, with control over RS-232, IP and IR to integrate directly with RTI processors.

• 8 analog + 4 mirrored digital audio source inputs
• 10 stereo output zones (8 amplified, 2 preamp)
• Class D amplification: 100W @ 4Ω per channel per zone
• Expandable up to 80 zones
• RS-232, IP and IR control, integrates with RTI systems
