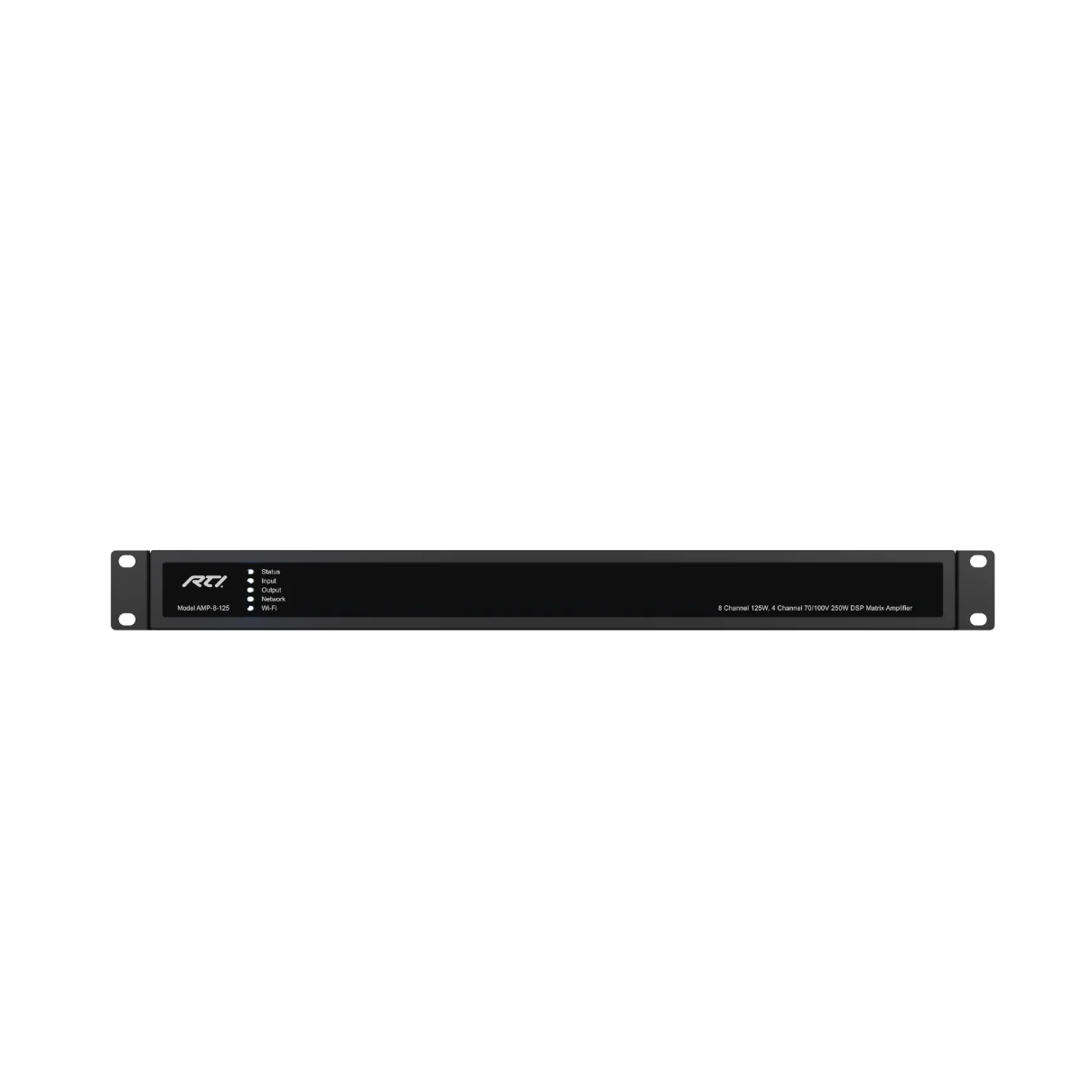

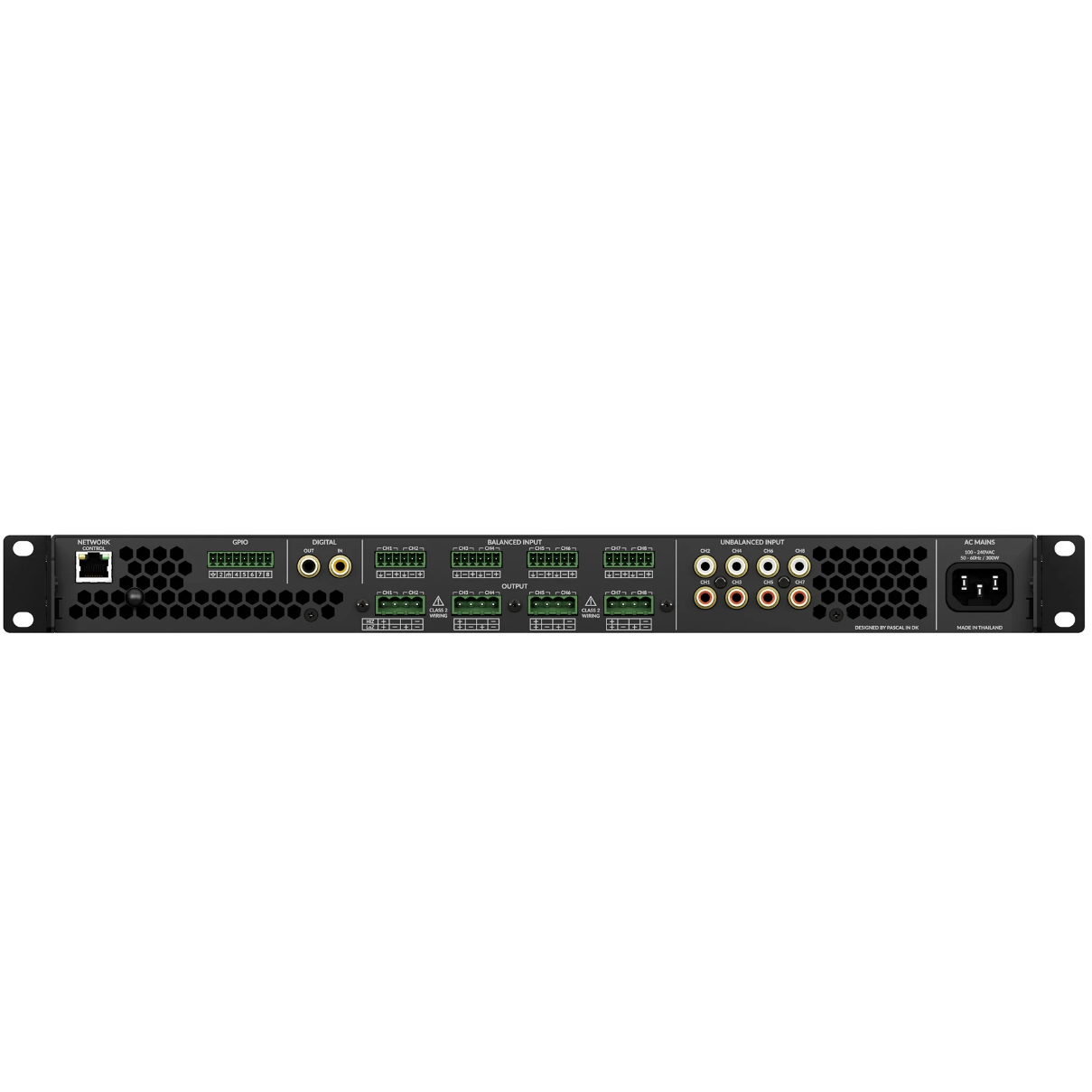

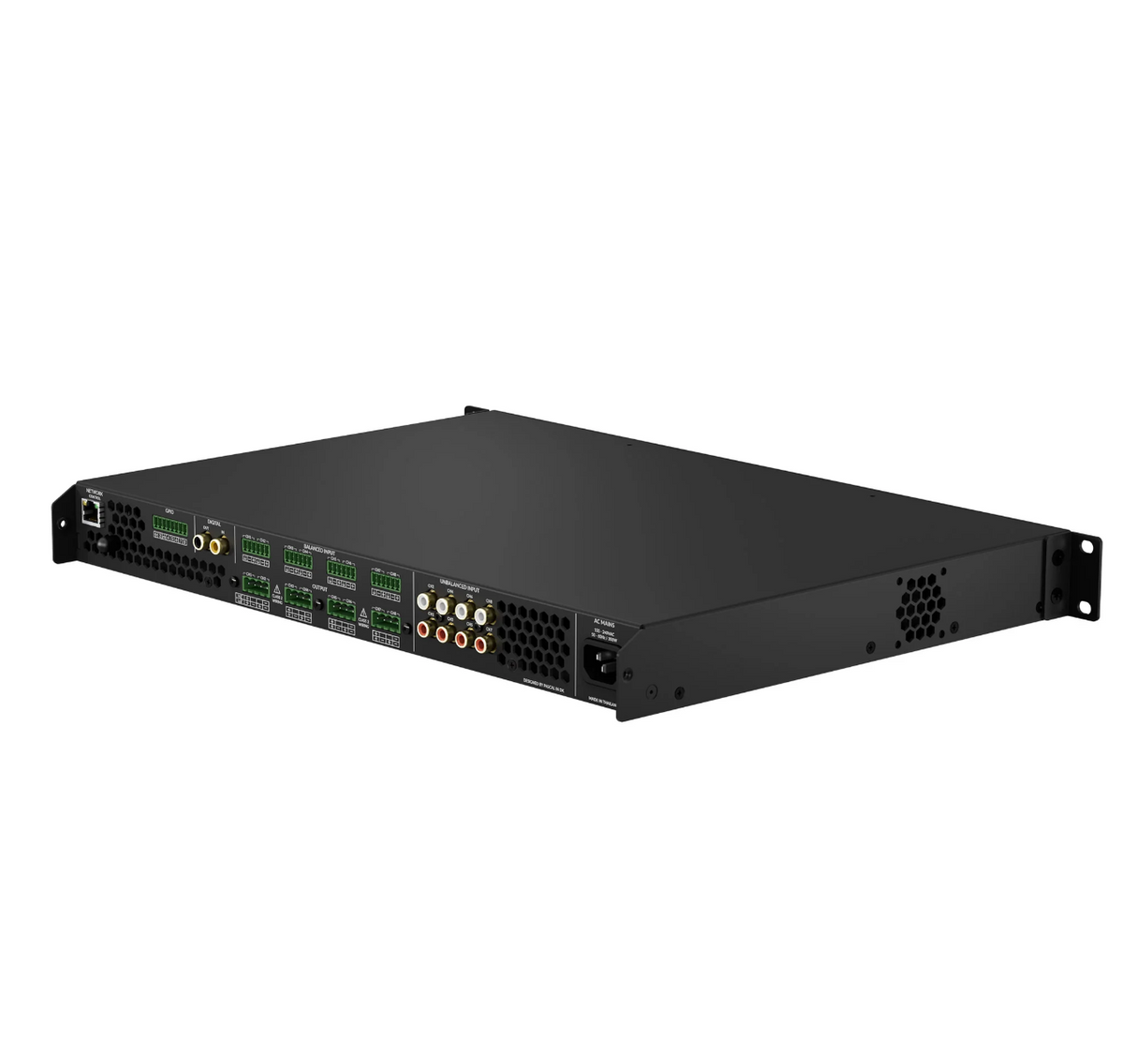

RTI AMP8-125 8-Channel 125W DSP Matrix Amplifier

The RTI AMP8-125 is an 8-channel DSP matrix amplifier for larger multi-zone background music and paging installs, built to integrate directly with RTI control processors for unified audio distribution and control.

Eight analog audio source inputs (balanced or unbalanced) plus a digital S/PDIF input feed a built-in DSP matrix, with flexible output configuration across four Lo-Z stereo zones, eight Lo-Z mono zones, four Hi-Z (70V/100V) mono zones, or a mix of all three. The Class D amplifier delivers 125W per channel at 4Ω/8Ω, or 250W per channel at 70V/100V line level, with per-zone DSP tuning and daisy-chain expansion.

• 8 analog audio inputs (balanced/unbalanced) + 1 digital S/PDIF input
• Flexible zone output: 4 Lo-Z stereo, 8 Lo-Z mono, 4 Hi-Z (70V/100V) mono, or mixed
• Class D amplification: 125W @ 4Ω/8Ω per channel or 250W @ 70V/100V per channel
• Built-in DSP for per-zone acoustic tuning
• Daisy-chainable for expanded zone counts
• Integrates directly with RTI control systems
